CP-060-100-25-030-H-C-AL - Datasheet

MBA

Category Information

Couplings - Helical - Standard

Standard Helical Couplings. 0.1 to 16.2 Nm.

  • An expanded range may be available on special order. Please enquire.
  • Zero backlash.
  • Max. Ang Misalignment 5 Degree
  • Max Parallel Offset 0.25mm.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Bore (B1) : 6.000 mm + 0.020 / - 0.000
    (Equiv. 0.236 in.)
  • Bore (B2) 10.000 mm + 0.020 / - 0.000
    (Equiv. 0.394 in.)
  • OD (D) / Clearance Dia (H) 25 / 27 mm +/- 0.4
    (Equiv. 0.984 in.)
  • Length (L) 30.000 mm +/- 0.40
  • Torsional Flexibility +/-0.70 Arc.Min / N.m
  • Material Aluminium
Country of Origin: US

Product Compliance and Data

Additional Resources

    View full details

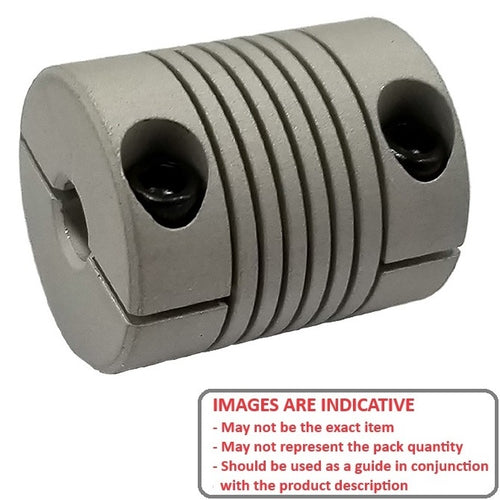

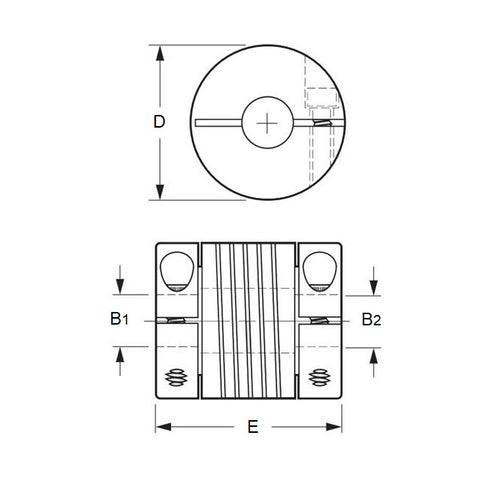

    CP-060-100-25-030-H-C-ALDiagramCP-060-100-25-030-H-C-ALImage
