D6-3.2 - Datasheet
MBA
Category Information
Motors - DC - 6mm Diameter6mm Diameter DC Motors. Our smallest motors at an affordable price.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- Various models 10000 to 30000 rpm
- Low starting voltage of Less than0.8V
- Rated Voltage 1.3V. Less than 43 dB Mechanical Noise Level
- 100 hours / 100000 turns mechanical life
- Clockwise rotation when viewed from shaft end. Not recommended for reversing.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

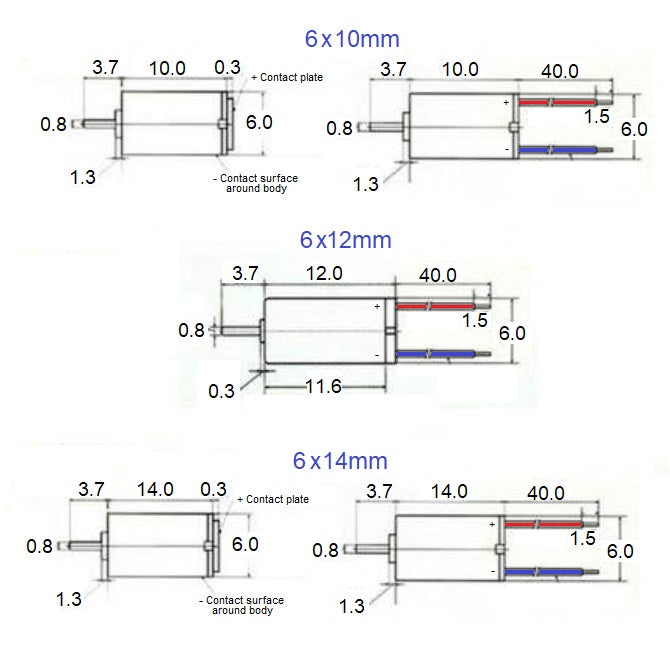

- Body Diameter
:
6.00
mm
(Equiv. 0.236 in.) - Body Length
14.00
mm
(Equiv. 0.551 in.) - Starting Voltage Less than 0.8 V
- Rated Voltage 1.3 V
- Shaft Size 0.8 mm
- Rated Current Less than 70mA mA
- Rated Speed 30000 +/- 2000 RPM
- Obstruct Current Less than 100mA mA
- Rotation Diection Clockwise
