W0050-T-009-012-L-CZ - Datasheet
MBA
Category Information

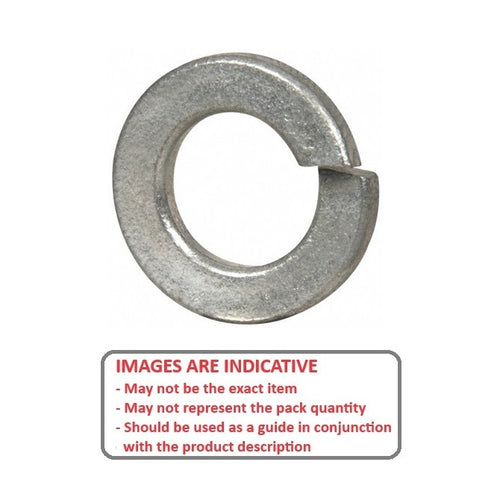

Washers - Lock - Split - SteelSteel Split Lock Washers. Split type. Plain and zinc plated steel selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data

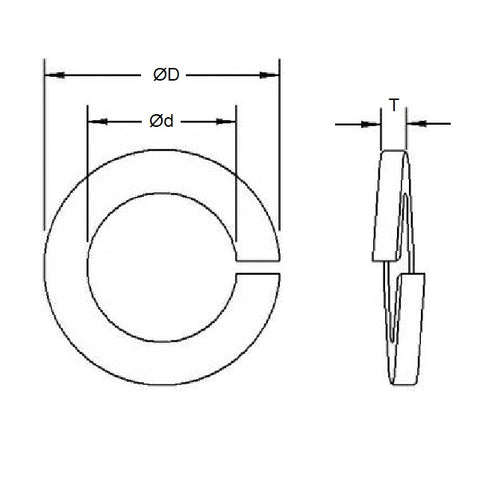

- Nominal Inside Diameter
:
5.00
mm
+ 0.4 / - 0.0
(Equiv. 0.197 in.) - Outside Diameter
9.2
mm
(Equiv. 0.362 in.) - Material Thickness (T)
1.20
mm
(Equiv. 0.047 in.) - Nominal Screw Size M5, 10-24, 10-32, 3/16
- Specs DIN 127 B
- Actual ID (Ref) 5.2 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- RS Components 0526833
- WASCA 1000405
- WASCA WSPSZNP5
