FMR85A-ZZS-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

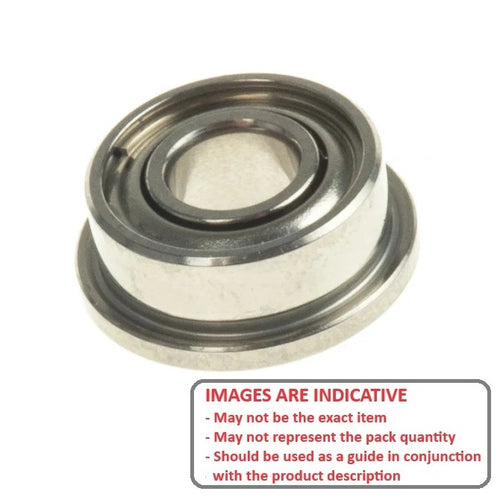

Double shielded flanged bearing
- ID (d)
:
5.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.197 in.) - O.D. (D)
8.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.315 in.) - Width (B)
2.500
mm
+ 0.000 / - 0.125
(Equiv. 0.098 in.) - Flange Diameter (DF) 9.200 mm
- Flange Width (BF) 0.600 mm
- Precision Grade Abec 1
- Closure Type ZZS
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FMR85A
- Limiting Speed 53000
- Cage Type Crown
- Static Load Rating KGf 9
- Dynamic Load Rating KGf 22
- Radii 0.10 mm
- Inner Shoulder (UI) 5.80mm
- Outer Shoulder (UO) 7.40 mm
- Number of Balls 9
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- CEN - Matrix - Replacement Bearing
- Cross Fire Force® - F1 Electric - Replacement Bearing
- Duratrax® - Evader BX Nitro - Replacement Bearing
- Duratrax® - Evader ST Nitro - Replacement Bearing
- Duratrax® - Street Force GP2 and RTR - Replacement Bearing
- GS General Silicone - Storm Pro Gas - Replacement Bearing
- Hobao® - Hyper 8 - Replacement Bearing
- Hobao® - Hyper E ST Truggy - Replacement Bearing
- Hot Bodies® - Lightning Stadium Pro - Replacement Bearing
- Hot Bodies® - Lightning Stadium RTR - Replacement Bearing
- HPI - R40 With Clutch Bell And Steering - Replacement Bearing
- Mugen® - MBX-RR - Replacement Bearing
- Ofna® - Hyper 7 Pro - Replacement Bearing
- Ofna® - Jammin - Replacement Bearing
- Ofna® - Jammin 1 CR - Replacement Bearing
- Ofna® - Jammin 1 CR With Steering - Replacement Bearing
- Ofna® - Ultra LX COMP RTR - Replacement Bearing
- Picco® - Integra 1/8 Gas - Replacement Bearing
- Picco® - Shepherd Speed 1/8 - Replacement Bearing
- RD Logistics - Mongoose - Replacement Bearing
- Schumaker® - Fusion R12 - Replacement Bearing
- Serpent® - 710 1-10TH Gas Sedan - Replacement Bearing
- Serpent® - 835 1-10 2WD - Replacement Bearing
- Serpent® - 835 1-10 4WD - Replacement Bearing
- Serpent® - 950R With STE Ten and Front Wheel UP - Replacement Bearing
- Serpent® - 950R With Steering and Tensioner - Replacement Bearing
- Serpent® - 960 - Replacement Bearing
- Serpent® - 960 FD - Replacement Bearing
- Serpent® - Excel 1/8 Gas - Replacement Bearing
- Serpent® - Impact 10 M2 Challenger - Replacement Bearing
- Serpent® - Impact 10 Pro 2 - Replacement Bearing
- Serpent® - Impact M2 Spec 2000 4WD - Replacement Bearing
- Serpent® - Impact-10 - Replacement Bearing
- Serpent® - Impulse 1/10 Scale Single SPE - Replacement Bearing
- Serpent® - Impulse Street 2 Speed 4WD - Replacement Bearing
- Serpent® - Impulse Street Spec 4WD - Replacement Bearing
- Serpent® - Sprint 6000 Gas - Replacement Bearing
- Serpent® - Vector - Replacement Bearing
- Serpent® - Vector Spec 2000 - Replacement Bearing
- Tamiya® - Bruiser - Replacement Bearing
- Tamiya® - Mountaineer - Replacement Bearing
- Tamiya® - TOA-3R Series - Replacement Bearing
- Trinity® - G4 Nitro Touring Car-E Class - Replacement Bearing
- Trinity® - Mongoose - Replacement Bearing
- JR - Ergo 30/46 - Replacement Bearing
- JR - Ergo 30/46 Complete Kit - Replacement Bearing
Cross References
- 57155K566
- SERPENT® 5x8
- Nachi® F5M08-ZZ
- NTN® FLWA675-ZZA
- Similar Part FMR85A-ZZ-MC3
- ISO MF85ZZ
- ISO MF85-ZZ
- BSC MLF5008-ZZ
- FMR85A-ZZSMC3
- FMR85AZZSMC3
- FLWA675ZZA
- FMR85AZMC3
- FMR85A-Z-MC3
- F5M08ZZ
- LF850-ZZ
- LF850ZZ
- MLF5008ZZ
- FMR85A Basic Size Ref
