Miniature Bearings Australia
BF0050-0062-0032-PC2 - Datasheet
MBA
Category Information

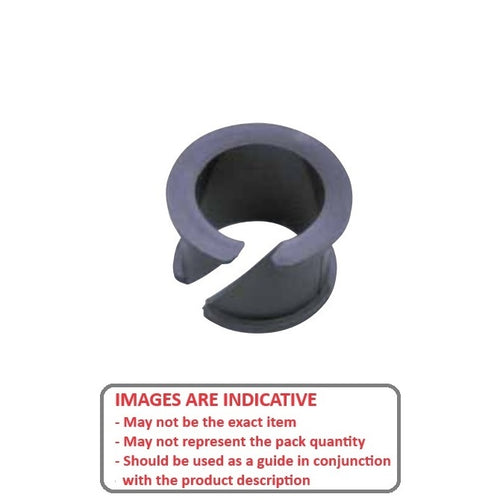

Bushes - Clip - Double FlangedDouble Flanged Clip Bushes. For use with sheet metal. Used as a light duty split bearing.
- Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
- Light weight
- M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)
Product Data

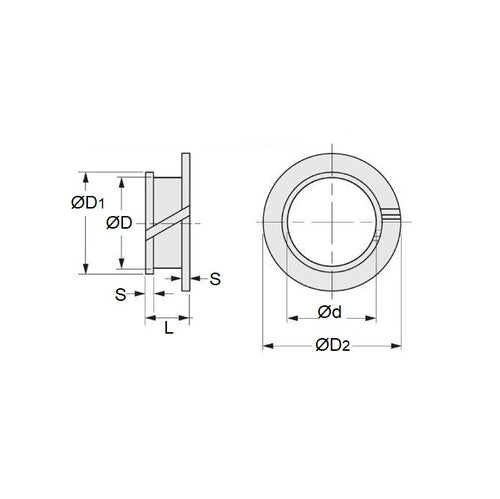

- Nominal Inside Diameter (d)
:
5.000
mm
(Equiv. 0.197 in.) - Nominal Outside Diameter (D)
6.200
mm
(Equiv. 0.244 in.) - Overall Length
3.200
mm
(Equiv. 0.126 in.) - Large Flange Dia 8.000 mm
- Flange Width (S) 0.6 mm
- Small Flange Dia 6.800 mm
- Min Housing Bore 5.980 mm
- Max Housing Bore 6.200 mm
- Min Shaft Size 4.975 mm
- Max Shaft Size 5.000 mm
- Sheet Metal Thickness 1.45 to 1.92
- Material Plastic
Product Compliance and Data
Additional Resources
- DU Bush Material Information
- General Bushes Catalogue
- Sintered Bronze Products Catalogue
- Solid Bronze Bushes catalogue
Cross References
- 7817K55
- S99GMCM0506832
