K-0500-0500-1000AO-C - Datasheet
ExaktKey
Category Information
Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data

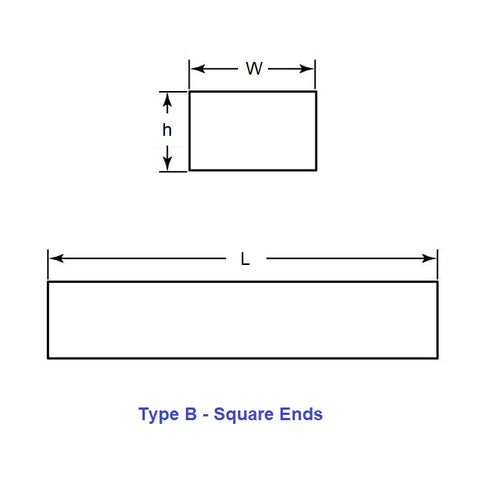

- Width (W)
:
5.00
mm
+ 0.030 / - 0.0
(Equiv. 0.197 in.) - Height (h)
5.00
mm
+ 0.030 / - 0.0
(Equiv. 0.197 in.) - Length (L)
10.00
mm
+/ - 0.25
(Equiv. 0.394 in.) - Finish Plain
- Tolerance Type Oversized
- End Type A (Rounded Ends)
- Material Carbon Steel C45
