Miniature Bearings Australia
CCE-00500-C - Datasheet
MBA
Category Information

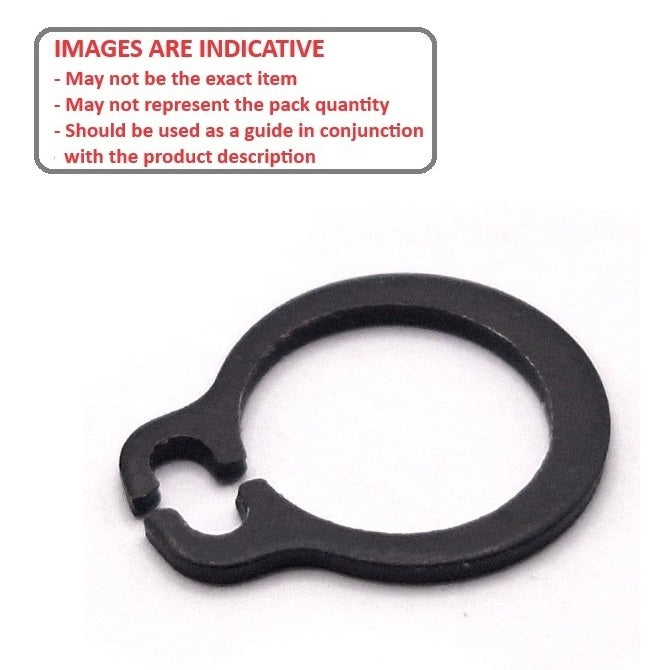

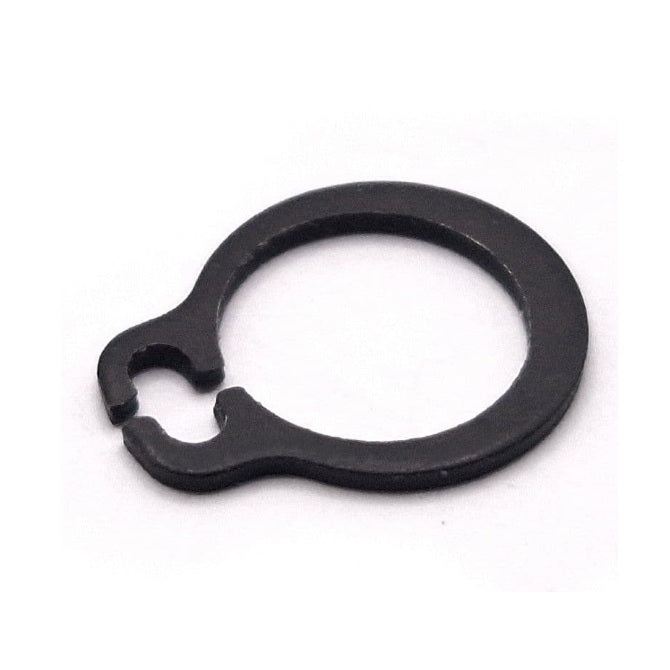

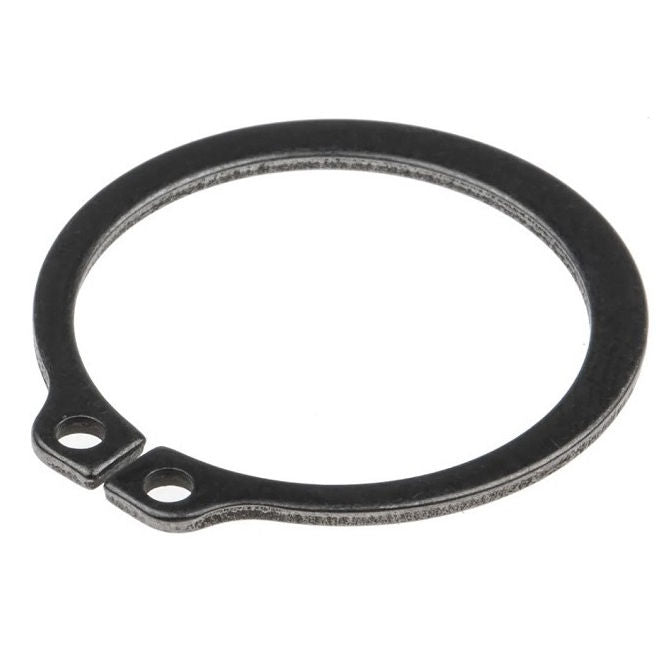

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
5.00
mm
(Equiv. 0.197 in.) - Clip Thickness (T)
0.60
mm
+ 0.00 / - 0.04
(Equiv. 0.024 in.) - Groove Dia. (Dg)
4.78
mm
+ 0.00 / - 0.05
(Equiv. 0.188 in.) - Approx. Loose Circlip ID (A) 4.70 mm
- Groove Width (W) 0.70 mm
- Clearance on Shaft (C1) 10.30 mm
- Clearance in Groove (C1) 9.80 mm
- Min. Lug Diameter (h) 1.00 mm
- Min. Extension (n) 0.30
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-005
- 98541A113
- Seeger A-005
- Seeger A5-BLS
- Seeger A5X0.6
- Bossard BN818-005
- Waldes D1400-005
- NoCor DSH-005
- Rotor Clip DSH-005
- Small Parts MER-05
- MD0471MQB005
- MER05
- DSH005
- CCE00500C
- 14000050
- 1400-0050
- 14000050APP
- 1400-0050APP
- D1400-0050APP
- D14000050
- D14000050APP
- A005
- A5BLS
- 471005
- BN818005
