RP050-0300-4 - Datasheet
MBA
Category Information

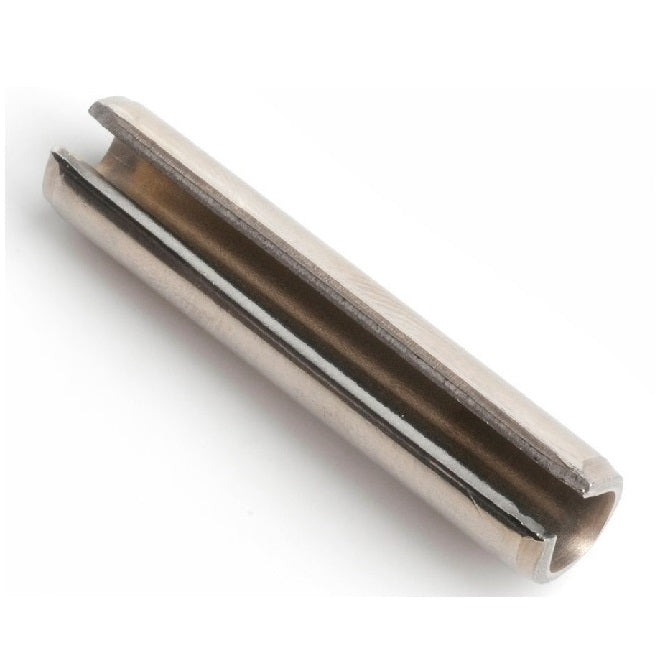

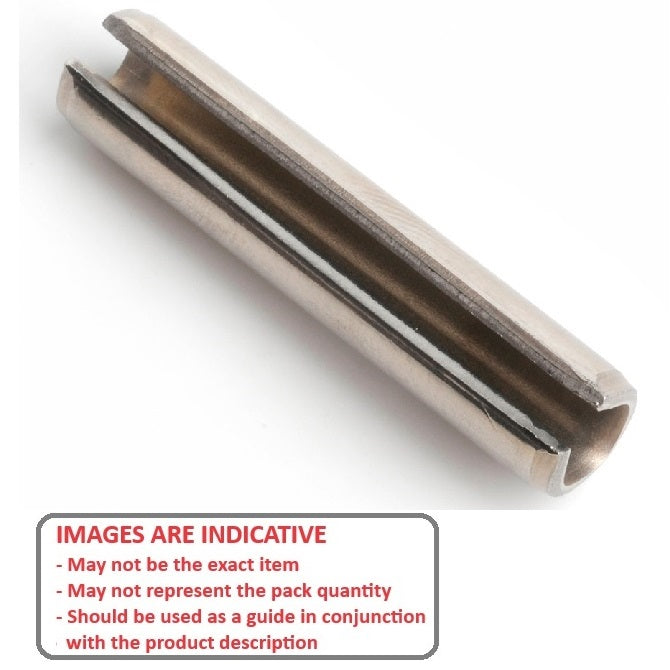

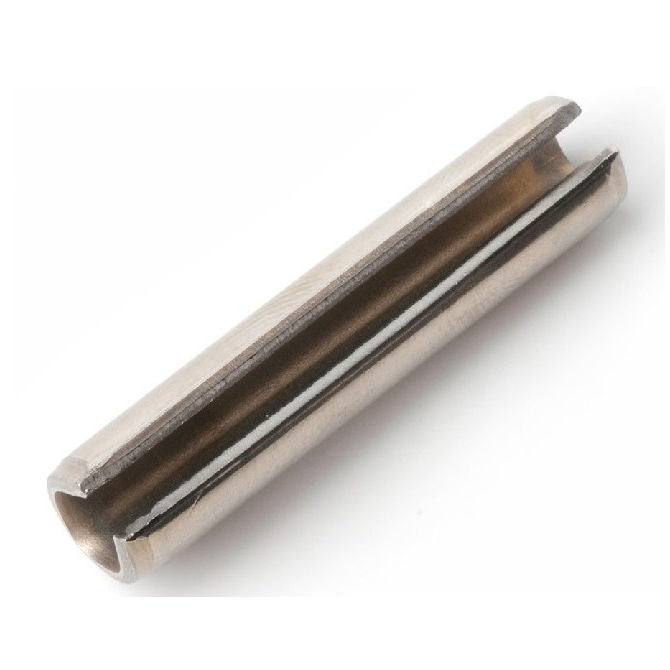

Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Diameter (D)
:
5.00
mm
(Equiv. 0.197 in.) - Length (L)
30.00
mm
(Equiv. 1.181 in.) - Free Diameter
5.50
mm
(Equiv. 0.217 in.) - Thickness (S) 0.80 mm
- Chamfer Length (cL) 0.65-0.85 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A612
- NoCor SPM3P-050-030-I
- NoCor SPMS-050-030-304SS
- SPM3P050030I
- SPMS050030304SS
- SRP5-30
- SRP530
