PSP-050-014-S2 - Datasheet
MBA
Category Information

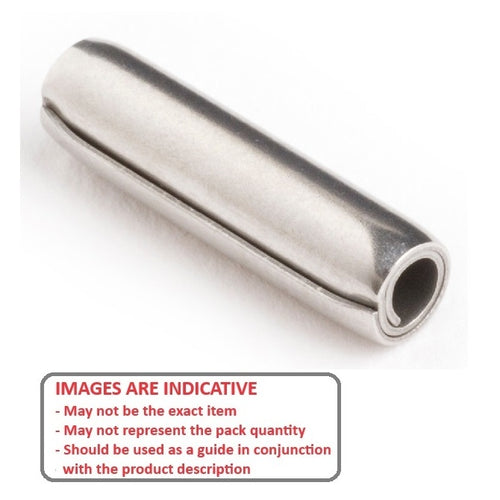

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter : 5.00 mm
- Length
14.00
mm
+/- 0.50
(Equiv. 0.551 in.) - Drill Size 5.00 - 5.12 mm
- Loose Diameter 5.25 - 5.50 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor® SPCM3P-050-014
- EP514
- EP5-14
- SPCM3P050014
