695A-ZZ-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction.
  • Standard single row radial ball bearings.

Product Data

Non ISO Width

  • ID (d) : 5.000 mm
    (Equiv. 0.197 in.)
  • OD (D) 13.000 mm
    (Equiv. 0.512 in.)
  • Width (B) 5.000 mm
    (Equiv. 0.197 in.)
  • Precision Grade Economy
  • Closure Type ZZ
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100

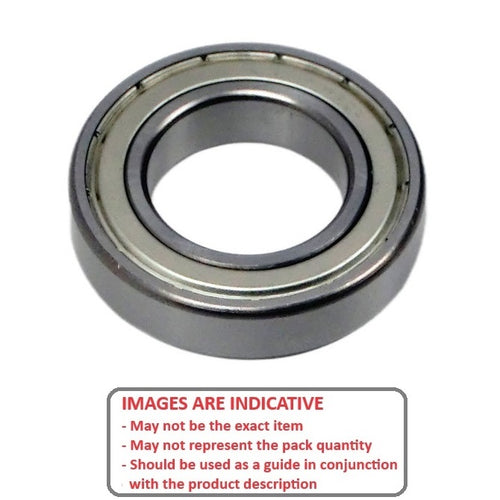

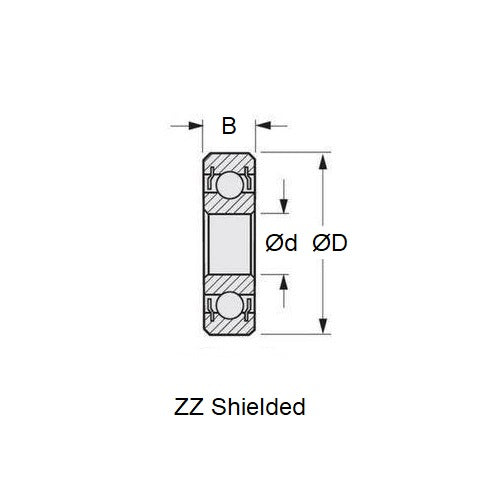

695A-ZZ-ECODiagram695A-ZZ-ECOImage
