W0050-F-010-050-BN - Datasheet

MBA

Category Information

Spacers - Through Bore Round - Brass

Brass Through Bore Round Spacers. Shaft spacers - Brass

  • An expanded range may be available on special order. Please enquire.

Product Data

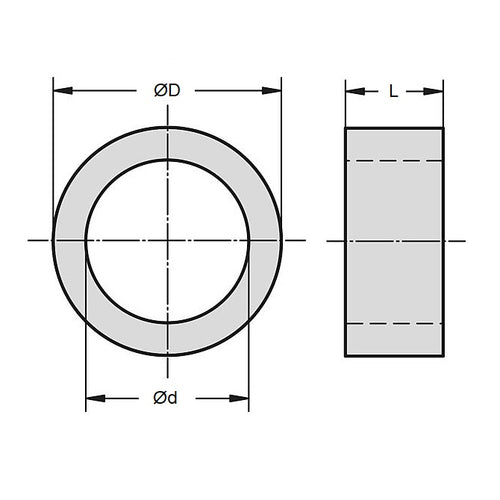

  • ID (d) : 5 mm + 0.48 / + 0.28
    (Equiv. 0.197 in.)
  • OD (D) 10 mm + 0.0 / - 0.03
    (Equiv. 0.394 in.)
  • Length (L) 5 mm + / - 0.09
    (Equiv. 0.197 in.)
  • Material Brass - Nickel Plated
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • 93295A420
  • PLB55
  • PLB5-5
