PLIT-050-100-100-21-LSH-S3 - Datasheet

MBA

Category Information

Plungers - Indexing - Locking - With Shoulder - Stainless Steel

Stainless Steel With Shoulder Locking Indexing Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

    Product Data

    • Thread (B) : M10x1 (Extra Fine)
    • Thread Length (E) 15.0 mm
      (Equiv. 0.591 in.)
    • Initial End Force 0.6 N
    • Final End Force 1.3 N
    • Tip Diameter (A) 5.0 mm
    • Tip Length (D) 5.0 mm
    • Nut Size (E) 13.8 mm
    • Nut Thickness (J) 5.0 mm
    • Material Stainless Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • WIP-710
      • WIP710
      View full details

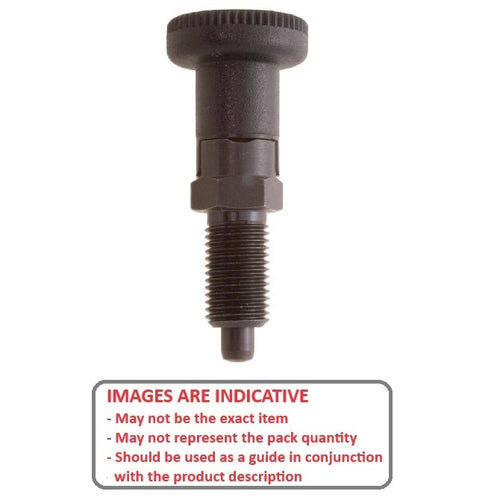

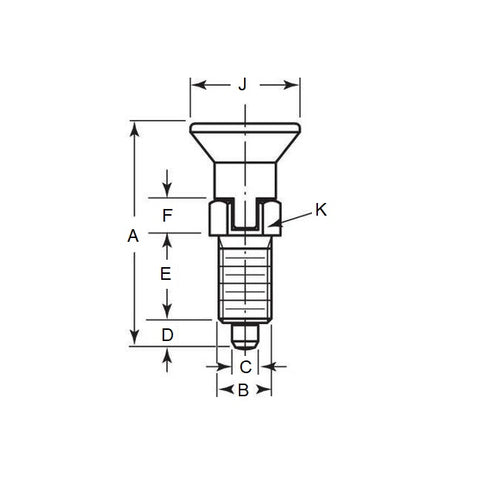

      PLIT-050-100-100-21-LSH-S3DiagramPLIT-050-100-100-21-LSH-S3Image
