DT-321RS - Datasheet
MBA
Category Information

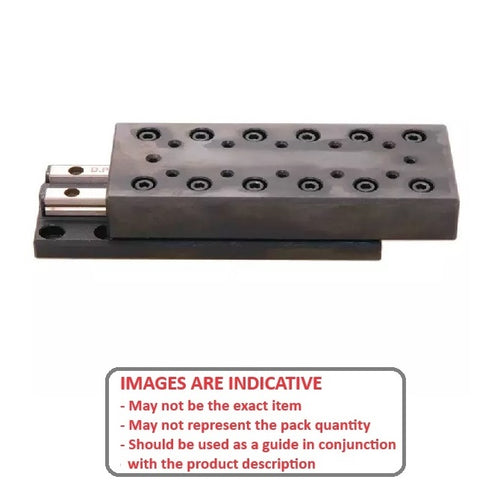

Linear - Cross Roller Slide Tables Standard - SteelSteel Cross Roller Slide Tables Standard Linear. Crossed roller slide tables are factory assembled and ready to install. They use crossed roller bearings to provide very precise linear motion with low friction and high support stiffness for the load.
- Applications include precision instruments, office and communications equipment, surface grinders, tool grinders, assembly fixtures and anywhere precise linear positioning is required.
- Precision ground v grooved ways and rollers provide high accuracy and load capacity. Withstands force in any direction from alternately crossed rollers at 45 deg angles.
- Straight line accuracy 0.0025mm per 25mm travel (0.0001 inch per inch). 0.0025mm position repeatability.
- Each table consists of a one piece base, a one piece table and a pair of linear bearings.
Product Data
- Travel
:
59.995
mm
(Equiv. 2.362 in.) - Load Capacity 220 Kg
- Length
105.004
mm

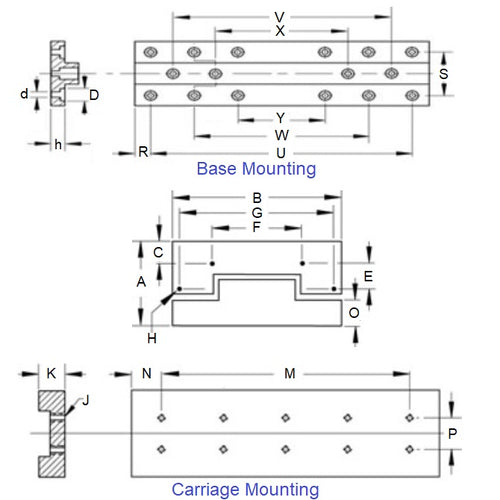

(Equiv. 4.134 in.) - Height and Width (A/B) 27.991 / 59.995 mm
- Base Plate Thickness (C) 8.992 mm
- Number of Hole (Base/Carriage) 4 / 6
- U / W / V / S 85.0 / - / - / 40.0 mm
- R 10.008 mm
- Base Thread 7.49 x 4.50
- Carriage Thread M4 x 10.49
- P 25.0
- Hole Spacing from End (N) 27.5 mm
- Material Steel
