GAS1RS - Datasheet

MBA

Category Information

Gas Springs - Adjustable Force

Adjustable Force Gas Springs. Provides mechanical assistance for lifting and supporting various components. Adjustable Force.

    Product Data

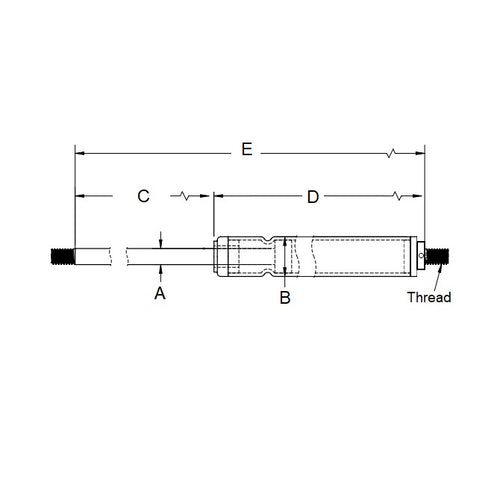

    • Stroke (C) : 59.94 mm
      (Equiv. 2.36 in.)
    • Extended Length 160.02 mm
      (Equiv. 6.3 in.)
    • Supplied Force 40.82 KG
    • Shaft Diameter (A) 5.84 mm
    • Body Diameter (B) 14.99 mm
    • Thread M5 (5x0.8mm)
    • More Information For more information please contact us.
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • GAS1
      • GAS-1
      View full details

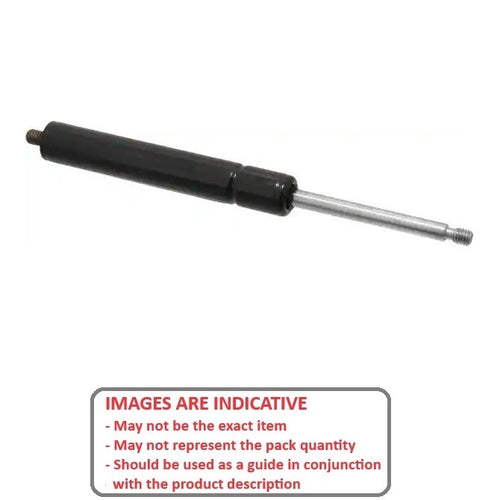

      GAS1RSDiagramGAS1RSImage
