CCI-05700-C - Datasheet
MBA
Category Information

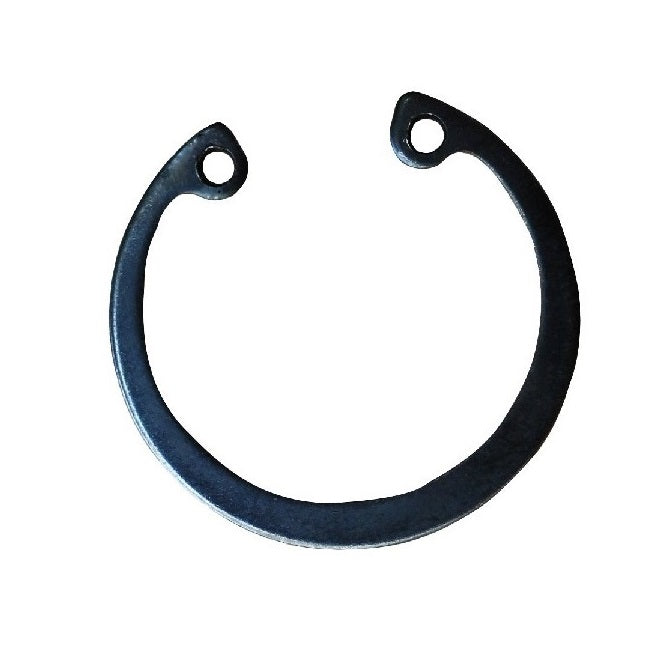

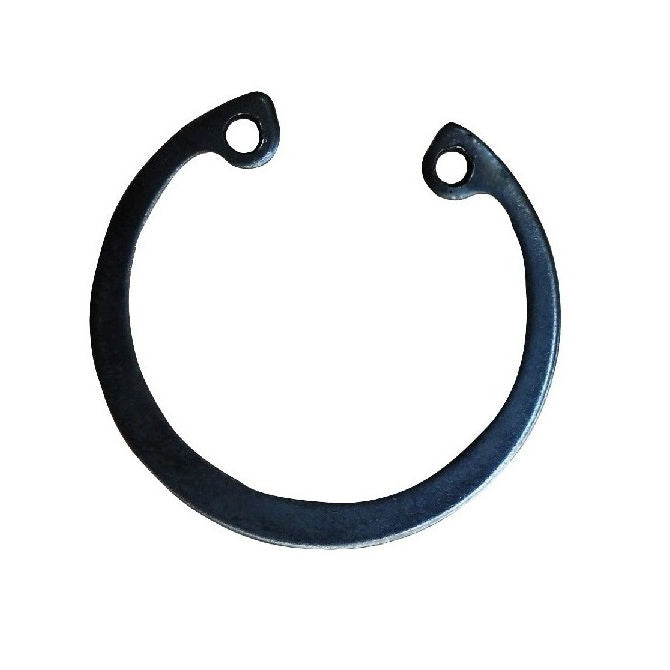

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
57.00
mm
(Equiv. 2.244 in.) - Clip Thickness (T)
2.00
mm
+ 0.30 / - 0.00
(Equiv. 0.079 in.) - Groove Dia. (Dg)
60.00
mm
+ 0.00 / - 0.07
(Equiv. 2.362 in.) - Approx. Loose Circlip OD (Dr) 62.20 mm + 1.10 / - 0.46
- Groove Width (W) 2.15 mm + 0.13 / - 0.00
- Clearance in Bore (C) 42.70 mm
- Clearance in Groove (C1) 46.40 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 4.50
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-057
- Bossard BN-822-057
- Waldes D1300-057
- NoCor DHO-057
- Rotor Clip DHO-057
- Seeger J-057
- Seeger J57
- Seeger J57-S
- Seeger J57X2
- Seeger NZT.J57
- D13000570APP
- D1300-0570
- D1300-0570APP
- J057
- J57S
- DHO057
- 472057
- BN822057
