E32011J - Datasheet

MBA

Category Information

Bearings - Tapered Roller Set - Single Row - Metric

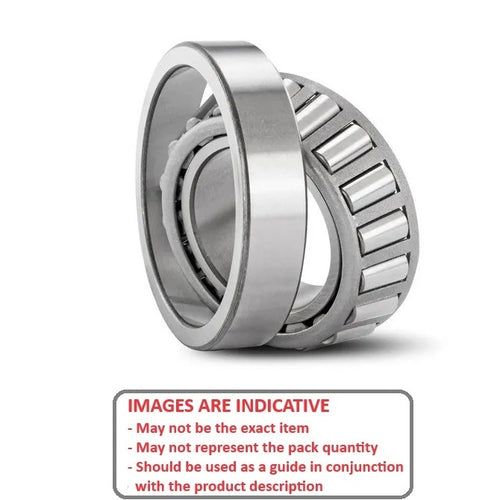

Metric Single Row Tapered Roller Set Bearings. Includes cup and cone

  • Tapered roller bearings provide for high thrust and axial loads, and are commonly used in automotive applications such as wheels, differentials and gearboxes.
  • Matched sets include the cup and the cone.
  • An expanded range may be available on special order. Please enquire.

Product Data

  • Inside Diameter : 55 mm
    (Equiv. 2.165 in.)
  • Outside Diameter 90 mm
    (Equiv. 3.543 in.)
  • Assembled Width 23 mm
    (Equiv. 0.906 in.)
  • Cone Width 23 mm
  • Cup Width 17.500 mm
  • Radius Cone (min) 1.500 mm
  • Radius Cup (min) 1.500 mm
  • Basic Dynamic Load 82500 N
  • Basic Static Load 122000 N
  • Limiting Speed for Grease 4000
  • Limiting Speed for Oil 5400
  • Material Chrome Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    View full details

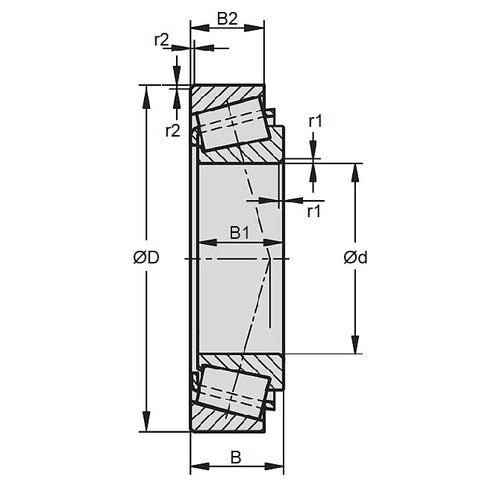

    E32011JDiagramE32011JImage
