TLB-2517-0556 - Datasheet
MBA
Category Information

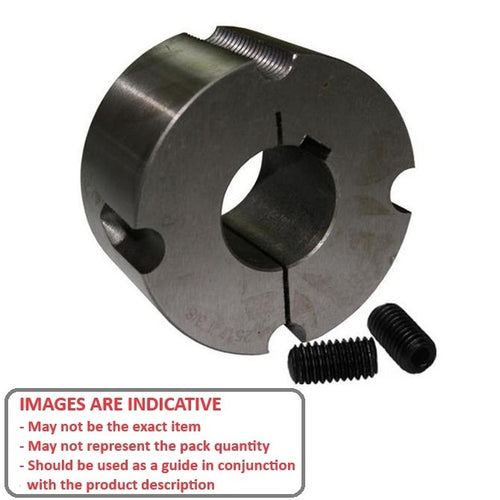

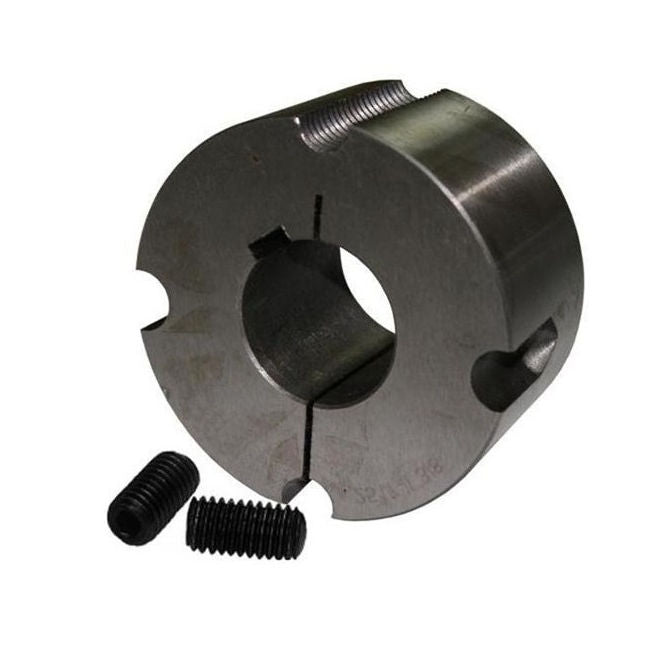

Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.
Product Data

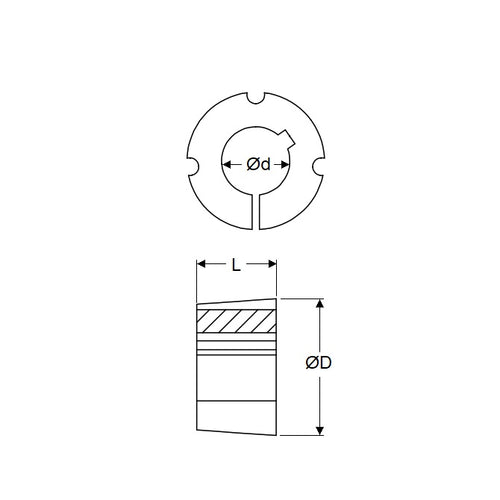

- Bore (d)
:
55.563
mm
(Equiv. 2.188 in.) - Large End Dia. (D)
85.5
mm
(Equiv. 3.366 in.) - Length (L)
44.45
mm
(Equiv. 1.75 in.) - Taperlock Series 2517
- No of Screws 2
- Screw Size 1/2x1 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 2517x2-3-16
- 57095K237
- 2517x2316
