B-100T-0051-0500-NFB - Datasheet
MBA
Category Information

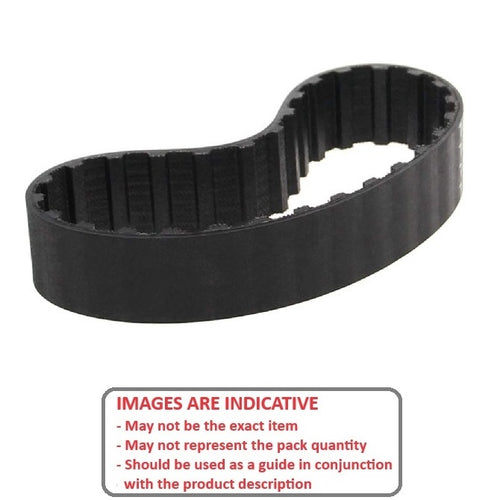

Belts - Timing 10.000mm Pitch - T10 - 50mm Wide50mm Wide T10 Timing 10.000mm Pitch Belts. T Series 10mm Metric Timing Belts.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

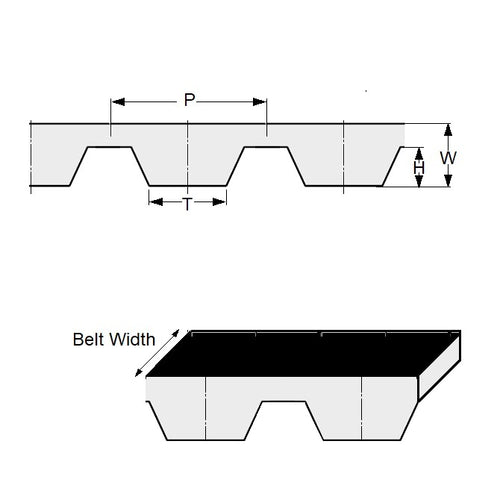

- Tooth Length (T) - 3.25mm
- Tooth Height (H) - 2.5mm
- Belt Height (W) - 4.5mm - Corner Radii ( r )- 0.6mm
- Pitch (P) - 10mm
Product Data
- Teeth : 51
- Length
510
mm
(Equiv. 20.079 in.) - Width
50.0
mm
(Equiv. 1.969 in.) - Reinforcement Fibreglass
- Appearance Black
- Material Nylon Covered Neoprene with Fibreglass Cords
