CMB051-41-100M-R60 - Datasheet

MBA

Category Information

Mounts - Buffer - Male - Round

Round Male Buffer Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 51.0 mm
    (Equiv. 2.008 in.)
  • Body Height (H) 41.0 mm
    (Equiv. 1.614 in.)
  • Thread Size (G) M10x1.5
  • Shore Hardness 60
  • Thread Length (L1) 16.0 mm
  • Compression Load 74.8 Kg
  • Max Shear Load 9.63 Kg
  • Material Natural Rubber
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • VM-165-1M
  • VM1651M
View full details

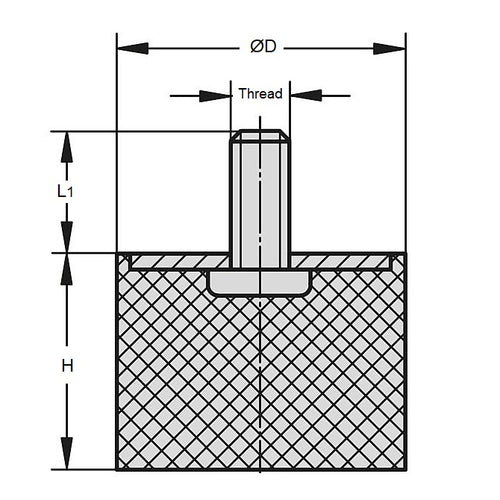

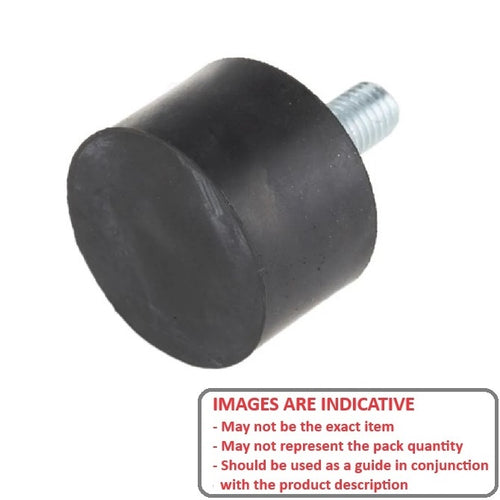

CMB051-41-100M-R60DiagramCMB051-41-100M-R60Image
