Miniature Bearings Australia
RR1035RS - Datasheet
MBA
Category Information

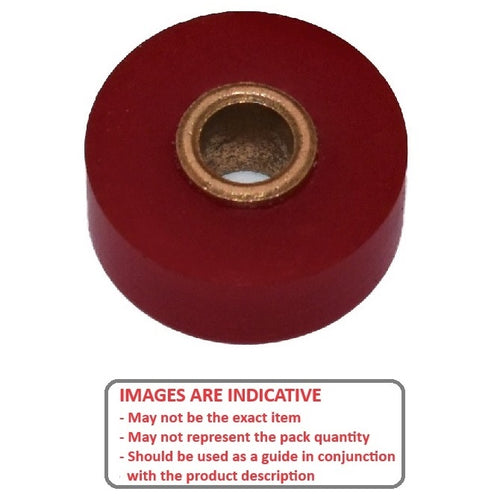

Rollers - Idler with Bearing - Urethane With Plain Sintered BearingUrethane With Plain Sintered Bearing Idler with Bearing Rollers. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

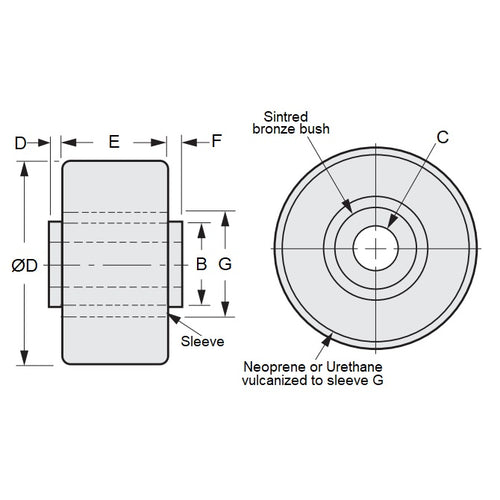

- Outside Diameter (A)
:
50.80
mm
(Equiv. 2 in.) - Bore (d)
9.550
mm
(Equiv. 0.376 in.) - Roller Width (B)
15.88
mm
(Equiv. 0.625 in.) - Roller Material Neoprene
- Roller Hardness 55 Durometer
- Bearing Type Sintered Bronze Bearing
- Bearing Projection ( D / F ) 0.13 x 0.13 mm
- Material Polyurethane
Product Compliance and Data
Additional Resources
Cross References
- RR-1035
- RR1035
