DT-231RS - Datasheet
MBA
Category Information

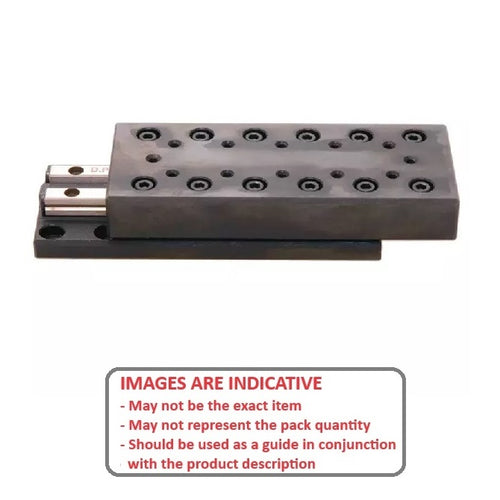

Linear - Cross Roller Slide Tables Standard - AluminiumAluminium Cross Roller Slide Tables Standard Linear. Crossed roller slide tables are factory assembled and ready to install. They use crossed roller bearings to provide very precise linear motion with low friction and high support stiffness for the load.
- Applications include precision instruments, office and communications equipment, surface grinders, tool grinders, assembly fixtures and anywhere precise linear positioning is required.
- Precision ground v grooved ways and rollers provide high accuracy and load capacity. Withstands force in any direction from alternately crossed rollers at 45 deg angles.
- Straight line accuracy 0.0025mm per 25mm travel (0.0001 inch per inch). 0.0025mm position repeatability.
- Each table consists of a one piece base, a one piece table and a pair of linear bearings.
Product Data
- Travel
:
50.800
mm
(Equiv. 2 in.) - Load Capacity 195 Kg
- Length
84.988
mm
(Equiv. 3.346 in.) - Height and Width (A/B) 35.00 / 80.00 mm
- Base Plate Thickness (C) 10.490 mm
- Number of Hole (Base/Carriage) 4 / 2 mm

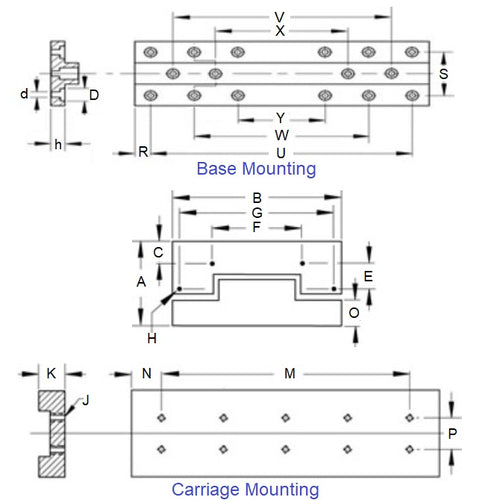

- U / W / V / S 64.9 / - / - / 55.0 mm
- R 10.008 mm
- Base Thread 8.33 x 5.00
- Carriage Thread 10-32 UNF x 13.00
- P 40.0
- Hole Spacing from End (N) 42.5 mm
- Material Aluminium
