Miniature Bearings Australia
CMB051-19-095C-R60 - Datasheet
MBA
Category Information

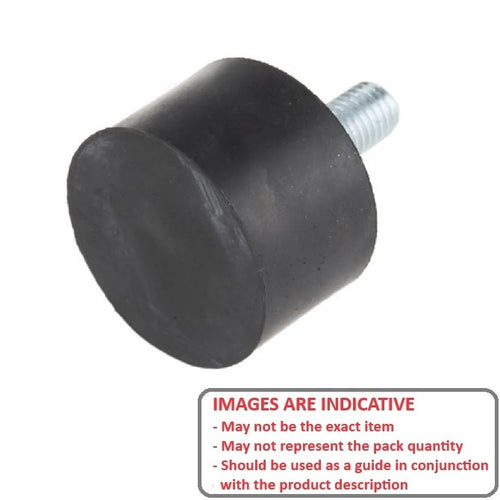

Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

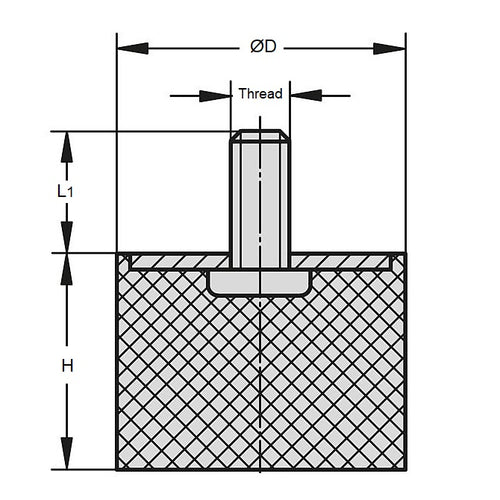

- Nom. Body Diameter (D)
:
50.8
mm
(Equiv. 2 in.) - Body Height (H)
19.1
mm
(Equiv. 0.752 in.) - Thread Size (G) 3/8 UNC (16 TPI)
- Shore Hardness 60
- Thread Length (L1) 28.6 mm
- Compression Load 167 Kg
- Max Shear Load 15.76 Kg
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- VM1751
- VM-175-1
