IP-122RS - Datasheet

MBA

Category Information

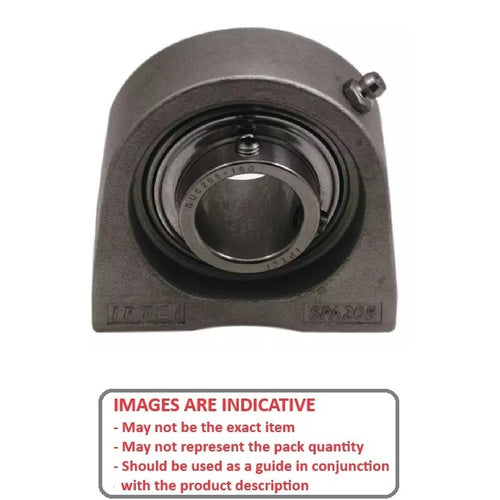

Housing and Bearing Assembly - Tapped Base - Stainless

Stainless Tapped Base Housing Assembly. Full stainless steel bearing units are the best solution for hostile chemical washdown applications. All metal bearing insert components are a combination of 302, 304 and 440 stainless steel. Seals are silicone rubber. Grease is H-1 food grade.

  • Operating temperature minus 20 oC to +120 deg C
  • Solid 304 stainless housings have a machined base and extremely smooth surface finish, essential for demanding washdown installations.
  • These housings do not experience flaking, cracking or discolouration and are virtually unaffected by scrapes.
  • Bearings are removable.
  • Food grade

Product Data

  • Bore : 50.000 mm
    (Equiv. 1.969 in.)
  • Centre Height (A) 57.200 mm
    (Equiv. 2.252 in.)
  • Width (B) 140.000 mm
    (Equiv. 5.512 in.)
  • Depth (C) 101.600 mm
  • Bolt Depth (D) 22.000 mm
  • Bolt Distances (E) 101.600 mm
  • Thread (G) UNC
  • K 51.600 mm
  • L 32.600 mm
Country of Origin: US
