Miniature Bearings Australia
CMB050-45-100M-R60 - Datasheet
MBA
Category Information

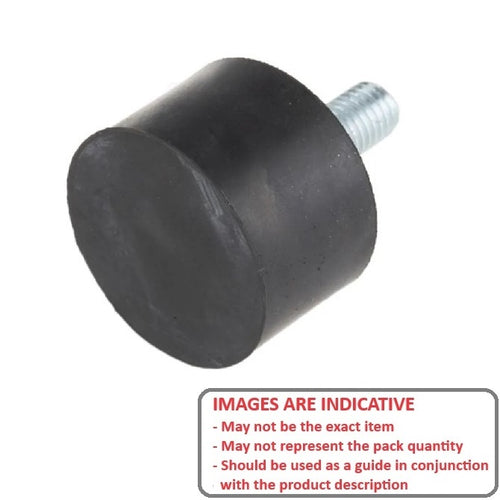

Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

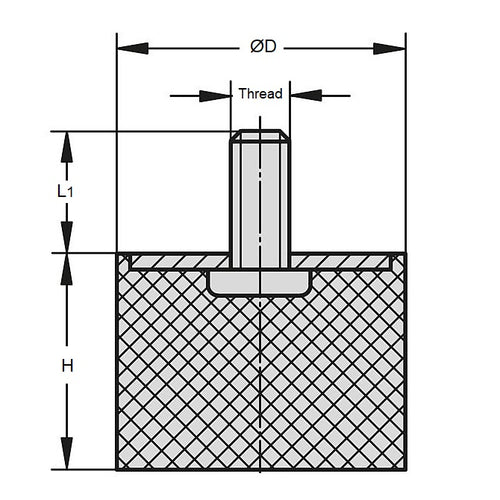

- Nom. Body Diameter (D)
:
50.0
mm
(Equiv. 1.969 in.) - Body Height (H)
45.0
mm
(Equiv. 1.772 in.) - Thread Size (G) M10x1.5
- Shore Hardness 60
- Thread Length (L1) 28.0 mm
- Compression Load 223 Kg
- Deflection 11.3 mm
- Configuration Male to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- D-ZY-10-50-45
- DZY105045
- 5045MFB2560
- 5045MFB25-60
