CP-059-318-32-048-R1-AC - Datasheet

MBA

Category Information

Couplings - Rigid - Clamp - 1 Piece - Steel

Steel 1 Piece Clamp Rigid Couplings. 12L14 Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Bore (b1) : Pilot Bore 5.969 mm
  • Bore (b2) 12.700 mm
  • OD (D) 31.750 mm
  • Length (L) 47.63 mm
  • Screw 8-32 x 9.52 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® CC-150
    • CC150
    View full details

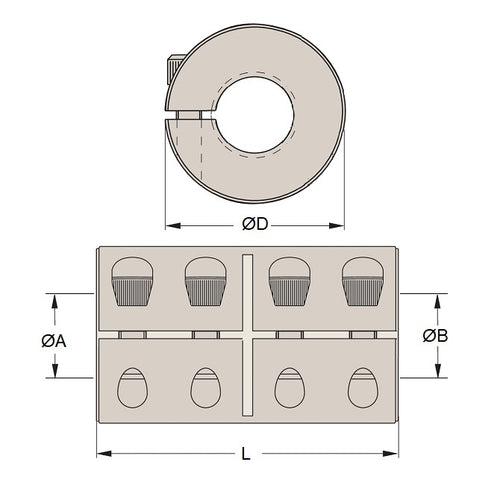

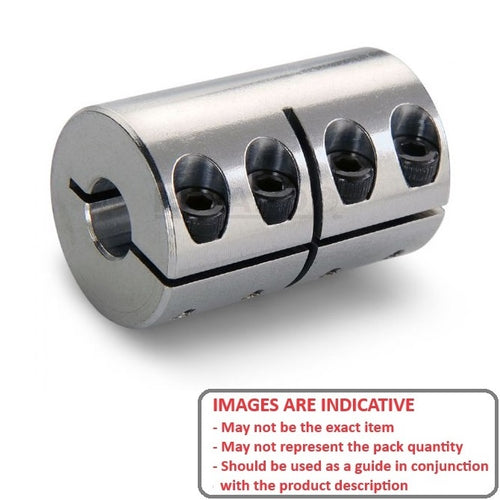

    CP-059-318-32-048-R1-ACDiagramCP-059-318-32-048-R1-ACImage
