KF159C-085-5LF - Datasheet

MBA

Category Information

Knobs - Lobe - Five Lobe - Female - Standard

Standard Female Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 5/8-11 UNC (15.88mm)
  • Head Diameter (A) 84.84 mm
    (Equiv. 3.34 in.)
  • Thread Length 21.8 mm
    (Equiv. 0.858 in.)
  • Colour Black
  • Hub Diameter (C) 34.80 mm
  • Hub Length (F) 29.97 mm
  • Knob Height (B) 54.86 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KHY-85
  • KHY85
View full details

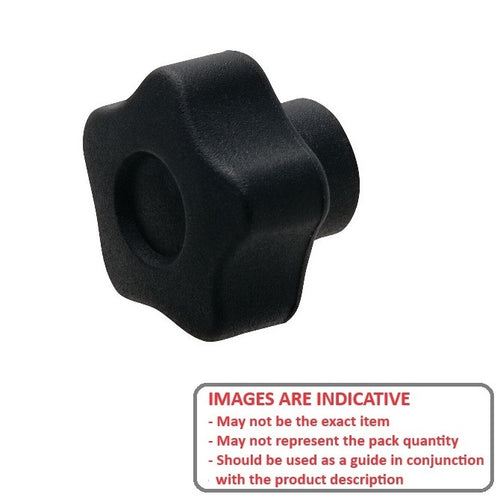

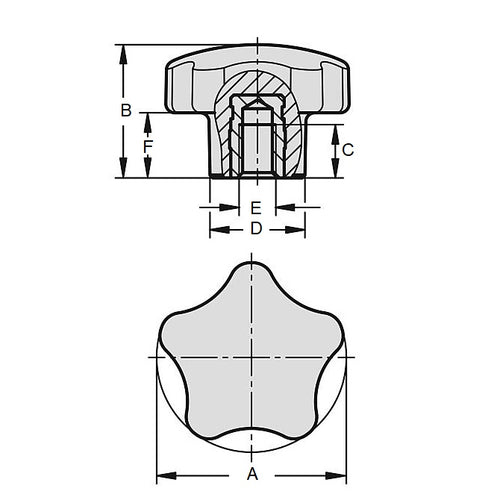

KF159C-085-5LFDiagramKF159C-085-5LFImage
