PLST-159C-794-CLG-013 - Datasheet

MBA

Category Information

Plungers - Spring - No Handle - Steel - Long Stroke

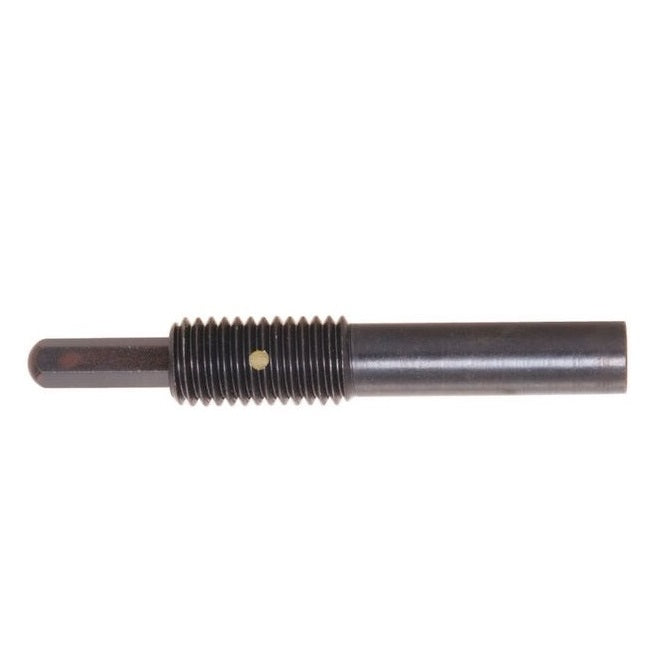

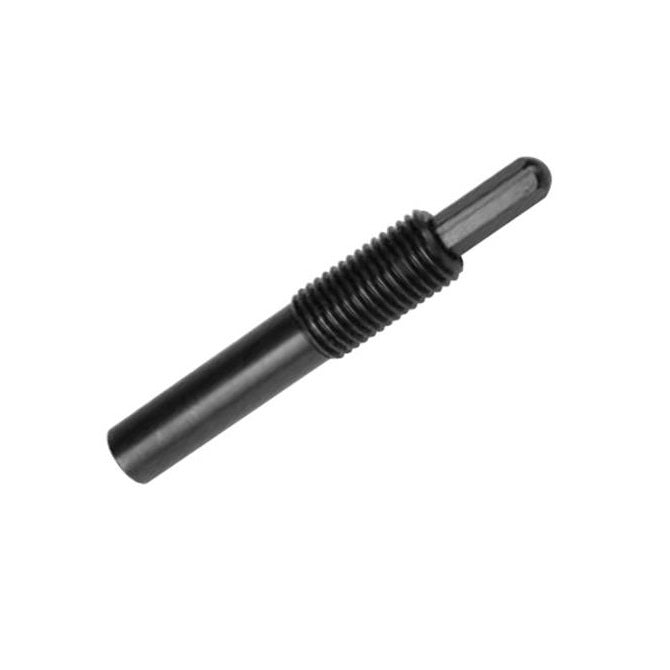

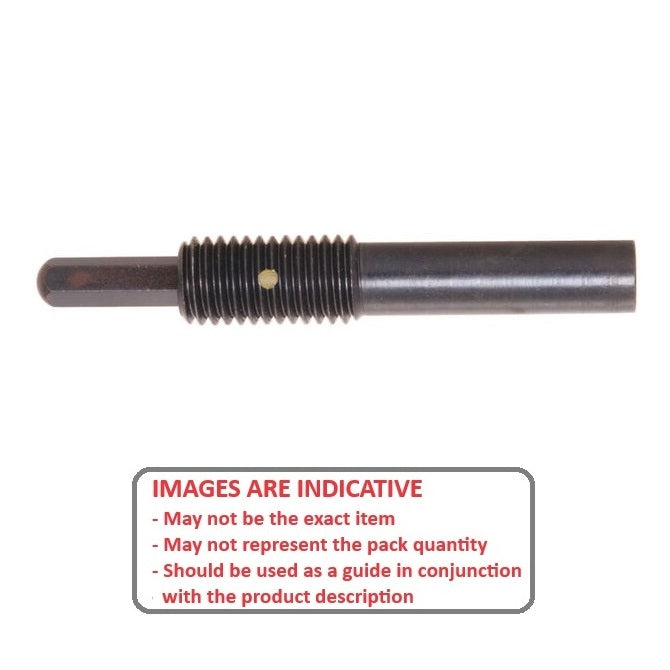

Long Stroke Steel No Handle Spring Plungers. With Long-Lok thread locking compound to prevent loosening

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

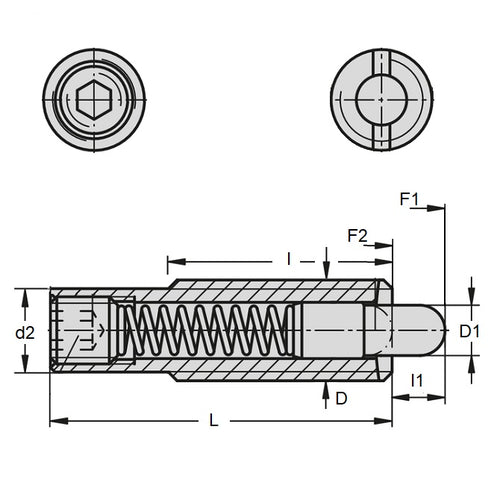

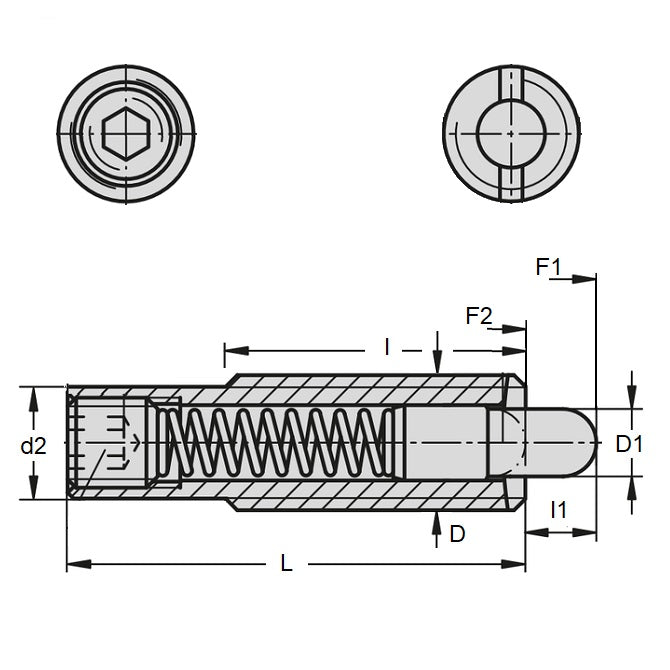

Product Data

  • Thread Size (D) : 5/8-11 UNC (15.88mm)
  • Body Length (L) 79.4 mm
    (Equiv. 3.126 in.)
  • Initial Pressure (F1) 7.1 N
  • Final Pressure (F2) 13.0 N
  • Tip Diameter (D1) 7.1 mm
  • Tip Length (l1) 25.4 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 33705A11
  • LTP00
  • LTP-00
