BP0050-0070-0080-AOI - Datasheet

MBA

Product Data

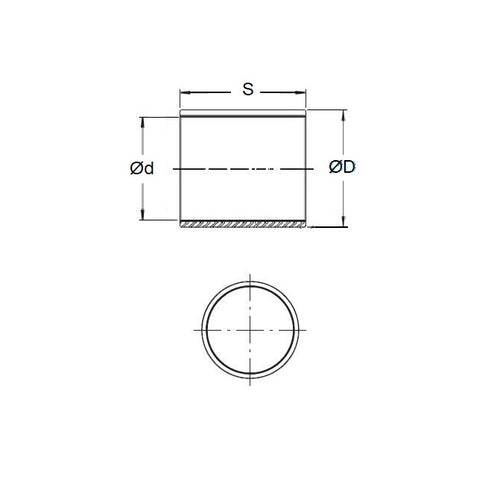

• Nominal Inside Diameter (d) : 5.000 mm _{+ 0.10 / - 0.00}
  (Equiv. 0.197 in.)
• Nominal Outside Diameter (D) 7.000 mm _{+ 0.00 / - 0.10}
  (Equiv. 0.276 in.)
• Length (s) 8.000 mm _{+ 0.00 / - 0.12}
  (Equiv. 0.315 in.)
• Material Acetal Oil Filled

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Bushes PDF Catalogue

• Plastic Flanged Bushes


• Measuring Small Parts
• Metalworking Resource Guide

• DU Bush Material Information
• General Bushes Catalogue
• Sintered Bronze Products Catalogue
• Solid Bronze Bushes catalogue

Cross References

• DAIDO DBS0508
