K-0500-0500-1800A-C - Datasheet
ExaktKey
Category Information

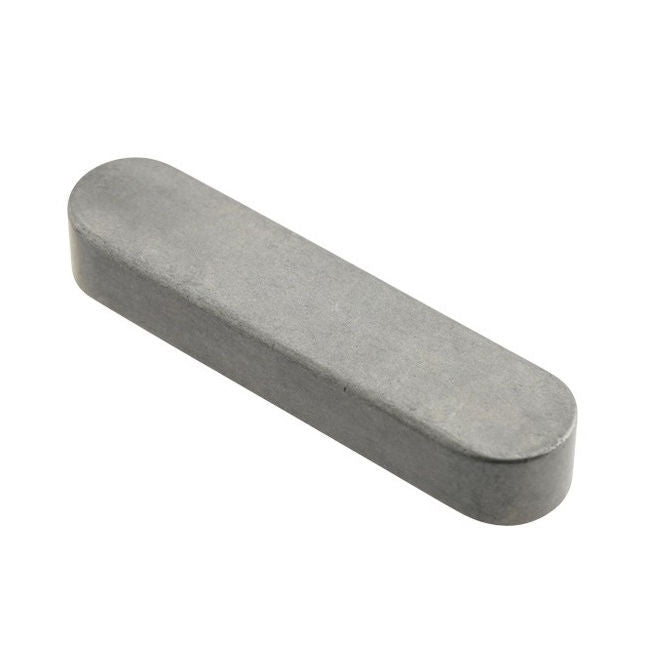

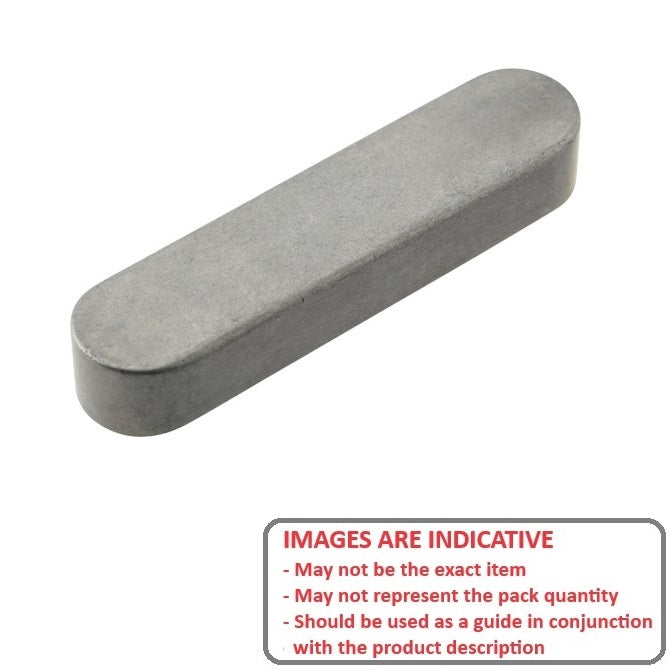

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data

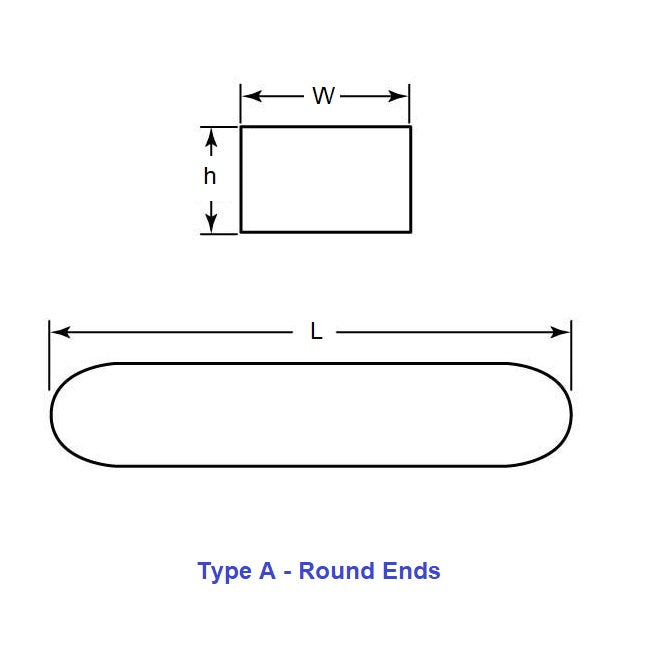

- Width (W)
:
5.00
mm
+ 0 / - 0.030
(Equiv. 0.197 in.) - Height (h)
5.00
mm
+ 0 / - 0.030
(Equiv. 0.197 in.) - Length (L)
18.00
mm
+/ - 0.25
(Equiv. 0.709 in.) - Finish Plain
- Tolerance Type Standard Undersized
- End Type A (Rounded Ends)
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor 320505-018
- 96717A170
- Misumi C-KES5-18
- CKES518
- KK518
- KK5-18
- 320505018
