REM-050-R-CB - Datasheet
MBA
Category Information

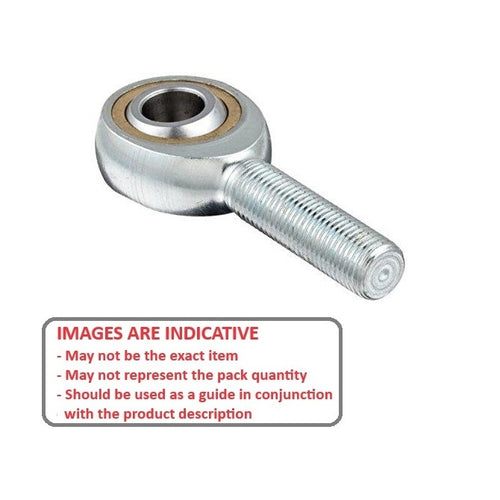

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

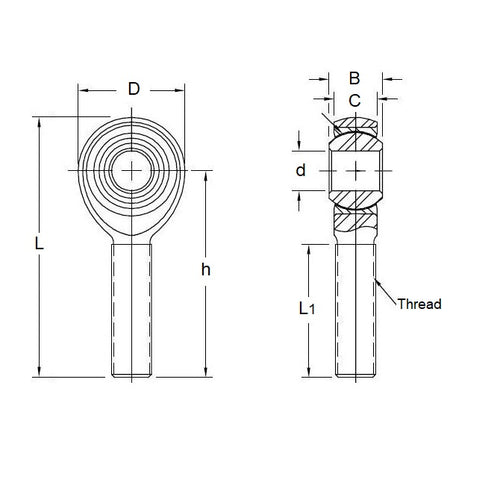

Product Data
- Eye Size (d1)
:
5
mm
(Equiv. 0.197 in.) - Overall Length (L)
41.00
mm
(Equiv. 1.614 in.) - Thread Size M5x0.8 Right
- Min. Thread Length (l2) 20.00 mm
- Head Width (W) 6.00 mm
- Eye Width (W1) 8.00 mm
- Head Diameter (D) 16.00 mm
- Centre Height (l1) 33.00 mm
- Grease Nipple No
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- RINO BEM-05-RH
- ASAHI JAM5
- KWK KM5
- IKO POS5
- Nachi POS-5
- NTN SMI-5
- SMI5
- BEM05RH
