REM-050-L-CT - Datasheet
MBA
Category Information

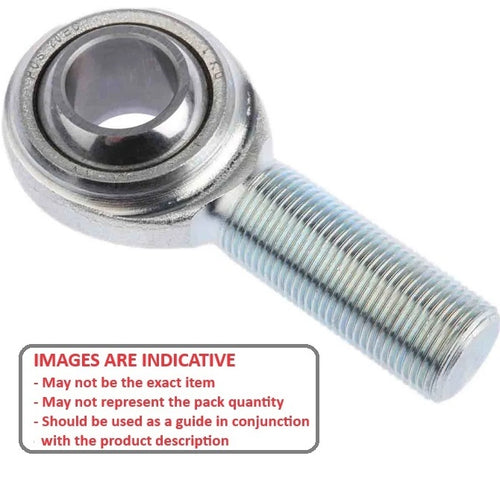

Rod Ends - Male - Steel - Tight Fit PTFE LinedTight Fit PTFE Lined Steel Male Rod Ends. Imperial and Metric. Tight fit (Minimal ball clearance) / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data

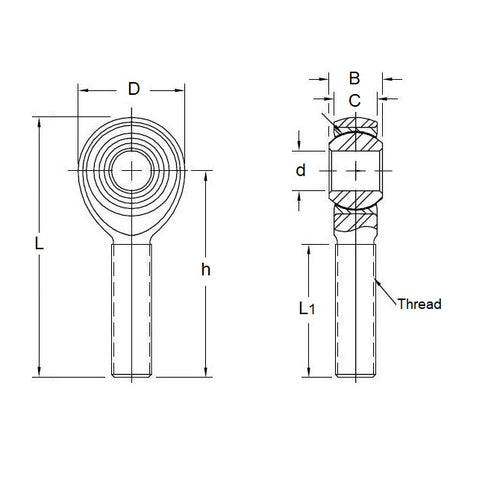

- Eye Size (d1)
:
5
mm
(Equiv. 0.197 in.) - Overall Length (L)
41.00
mm
(Equiv. 1.614 in.) - Thread Size M5x0.8 Left
- Min. Thread Length (l2) 20.00 mm
- Head Width (W) 7.00 mm
- Eye Width (W1) 8.00 mm
- Head Diameter (D) 16.00 mm
- Centre Height (l1) 33.00 mm
- Material Steel with PTFE Lined Raceway
Product Compliance and Data
Additional Resources
Cross References
- MTR DM5L
- Misumi E-GZWL5
- KWK TM5L
- EGZWL5
