REM-050-L-CB - Datasheet
MBA
Category Information

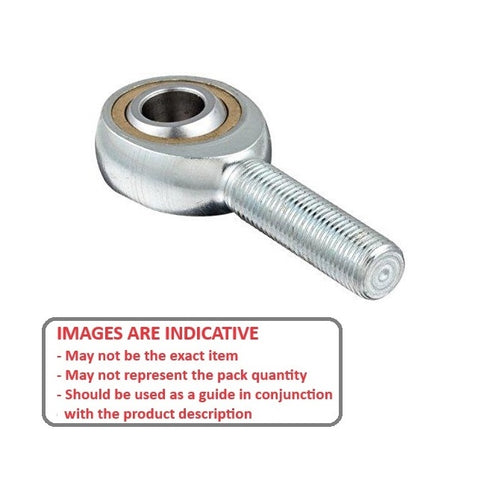

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data

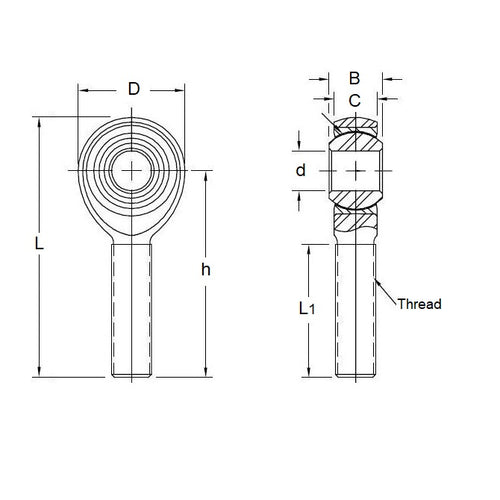

- Eye Size (d1)
:
5
mm
(Equiv. 0.197 in.) - Overall Length (L)
41.00
mm
(Equiv. 1.614 in.) - Thread Size M5x0.8 Left
- Min. Thread Length (l2) 20.00 mm
- Head Width (W) 6.00 mm
- Eye Width (W1) 8.00 mm
- Head Diameter (D) 16.00 mm
- Centre Height (l1) 33.00 mm
- Grease Nipple No
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi E-GYWL5
- ASAHI JAM5L
- KWK KM5L
- IKO POS5L
- Nachi POS-5L
- NTN SMI-5L
- SMI5L
- EGYWL5
