SK039W-051-SL-BR - Datasheet
MBA
Category Information

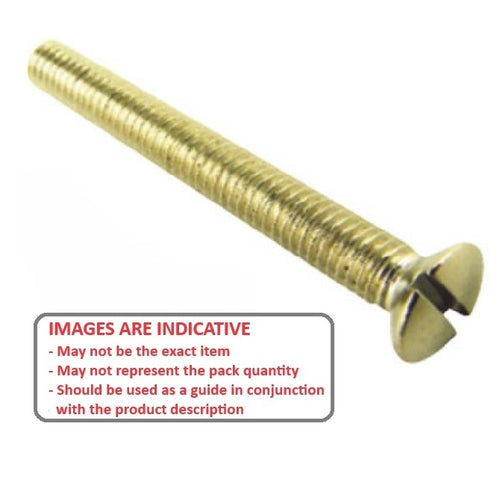

Screws - Countersunk - Slotted - BrassBrass Slotted Countersunk Screws. Flat Head Countersunk METRIC and BSW
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 5/32-32 BSW (3.969mm)
- Overall Length (L)
50.8
mm
(Equiv. 2 in.) - Material Brass
- Max Head Diameter 6.94 mm
- Max Head Height 1.78 mm
- Type Countersunk / Slotted
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech BRCSP5322
