DB115RS - Datasheet

MBA

Category Information

Rod - Drill Blanks

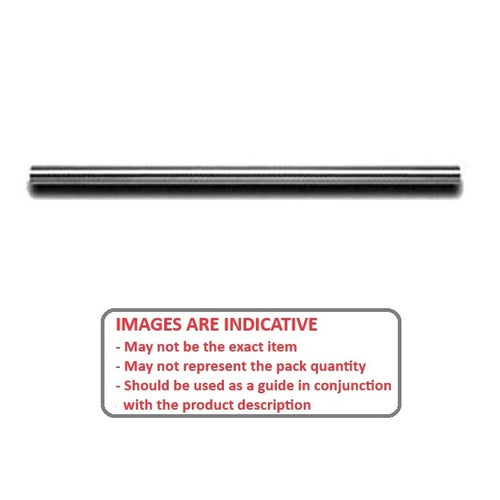

Drill Blanks Rod. Made of hardened high speed steel.

  • Useful for turning and boring tools, constructing pins, hinge pins, arbors, pin gauges, dowels, preforating punchs.
  • Can also be ground to make special cutting tools such as mills, spotfaces, angle or radii cutters, etc.

Product Data

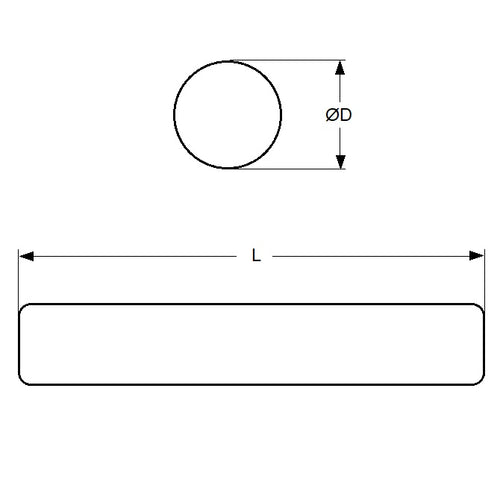

  • Nominal Diameter : 5.309 mm + 0.000 / - 0.013
    (Equiv. 0.209 in.)
  • Length 95.25 mm
  • Letter / Number No 4
  • Material High Speed Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 3009A214
  • Reid Tool® DB-115
  • DB115
