IN-EP-079C-143-S3 - Datasheet

MBA

Category Information

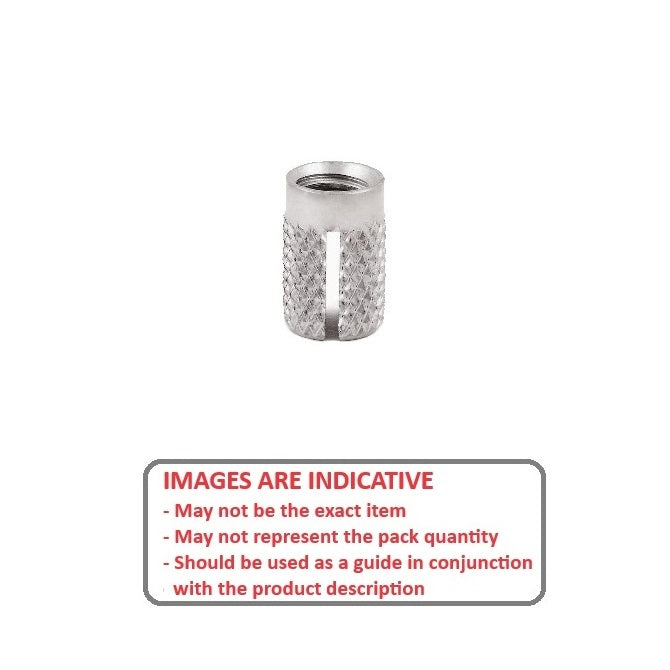

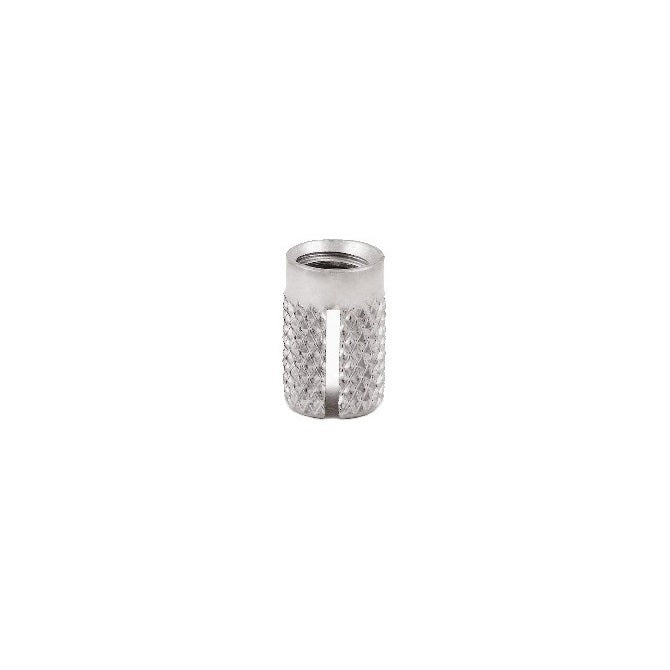

Inserts - Expansion - Press In - 303 Stainless Steel

303 Stainless Steel Press In Expansion Inserts. Use for cored or drilled holes in plastics. Designed to replace molded in inserts and threads in plastic casings. Also known as threaded inserts.

  • Material : 303 Stainless Steel
  • Easiest inserts to install - simply push into a pre-moulded hole.
  • Used with plastics or other materials. Material must be strong enough to withstand the expansion of the insert.
  • The insertion of the screw locks the external knurls into the wall of the hole.
  • Provides excellent thread durability but where maximum strength is required other inserts shown in this catalogue should be preferred.

Product Data

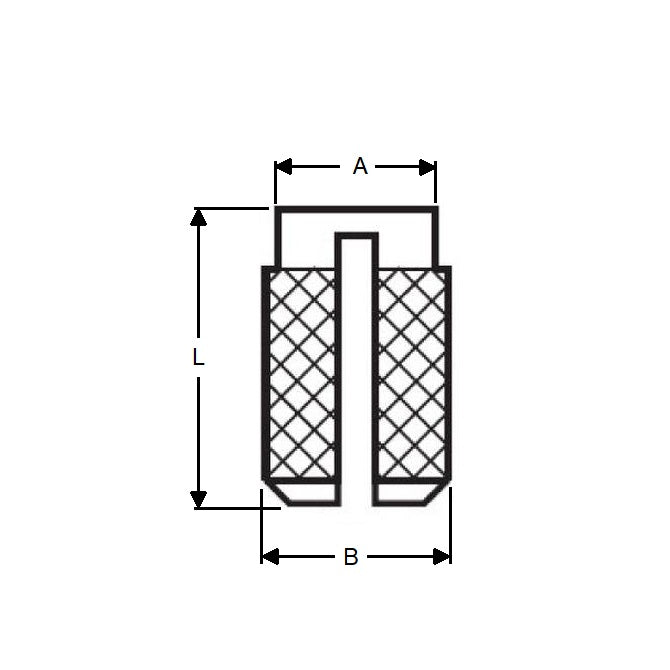

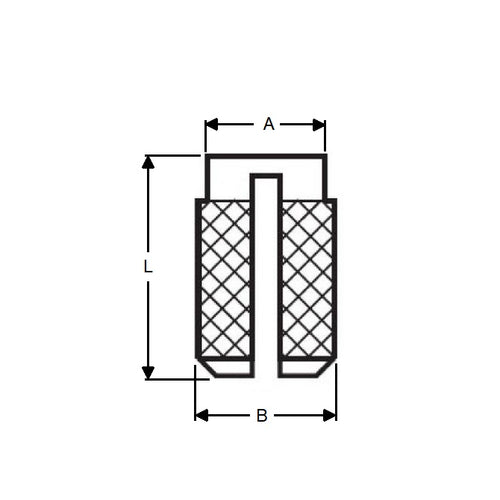

  • Internal Thread : 5/16-18 UNC (7.94mm)
  • Rec. Hole Diameter 9.52 mm + 0.000 / - 0.254
    (Equiv. 0.375 in.)
  • Length (L) 14.30 mm +/ - 0.25
    (Equiv. 0.563 in.)
  • Knurled OD (B) 9.53 mm
  • 9.88
  • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • INEP0794C143S3
