KM079C-044-6L32-SP - Datasheet

MBA

Category Information

Knobs - Lobe - Six Lobe - Male

Male Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 5/16-18 UNC (7.94mm)
  • Head Diameter (A) 43.94 mm
    (Equiv. 1.73 in.)
  • Thread Length 31.8 mm
    (Equiv. 1.252 in.)
  • Colour Black
  • Hub Diameter (C) 23.11 mm
  • Hub Length (D) 9.91 mm
  • Knob Height (B) 26.92 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • RST69
  • RST-69
View full details

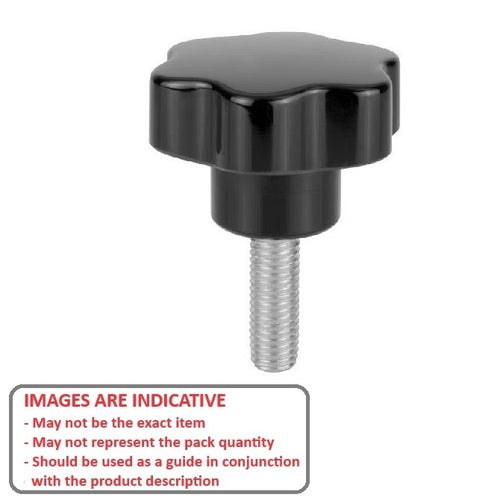

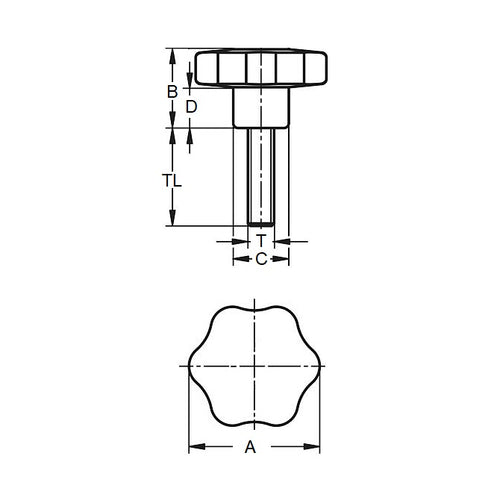

KM079C-044-6L32-SPDiagramKM079C-044-6L32-SPImage
