KF079C-040-5L-BR18 - Datasheet

MBA

Category Information

Knobs - Lobe - Five Lobe - Female - Standard

Standard Female Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 5/16-18 UNC (7.94mm)
  • Head Diameter (A) 39.88 mm
    (Equiv. 1.57 in.)
  • Thread Length 18.0 mm
    (Equiv. 0.709 in.)
  • Colour Black
  • Hub Diameter (C) 17.02 mm
  • Knob Height (B) 26.92 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KHY-130
  • KHY130
View full details

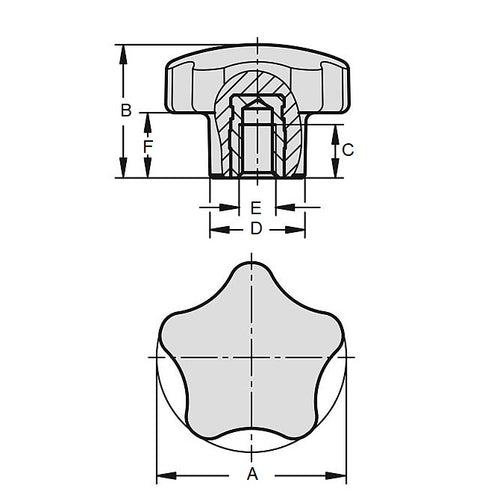

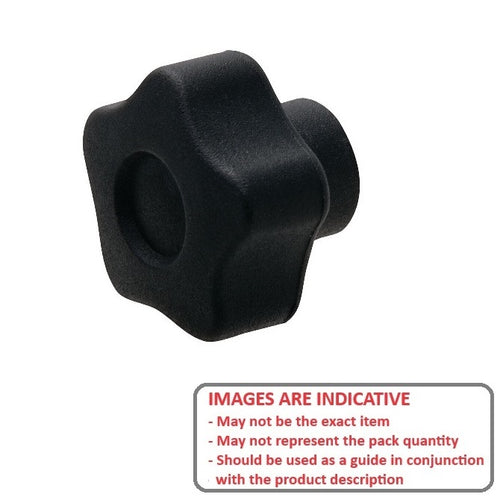

KF079C-040-5L-BR18DiagramKF079C-040-5L-BR18Image
