KM079C-038-CS20 - Datasheet

MBA

Product Data

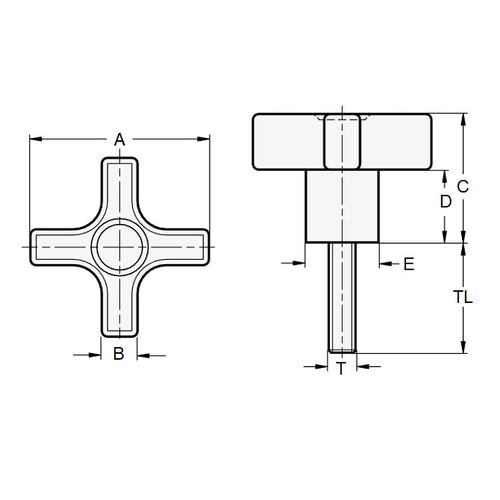

• Thread Size : 5/16-18 UNC (7.94mm)
• Head Diameter (A) 38.10 mm
  (Equiv. 1.5 in.)
• Thread Length 20.1 mm
  (Equiv. 0.791 in.)
• Knob Length (C) 12.45 mm
• Hub Diameter (E) 16.00 mm
• Hub Length (D) 24.13 mm
• Material Plated Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• JCL-128
• JCL128
