KF079C-032-NG - Datasheet
MBA
Category Information

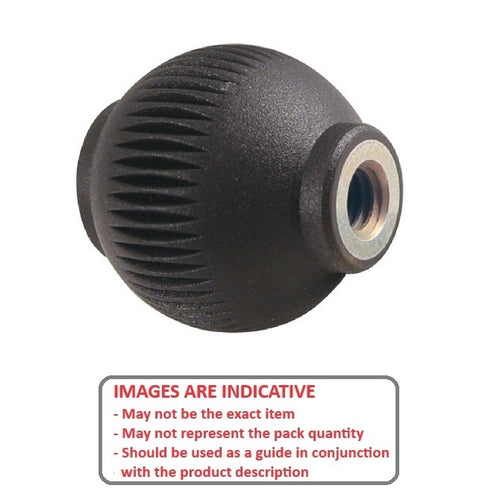

Knobs - Ball - Female Threaded - Novo-GripNovo-Grip Female Threaded Ball Knobs. Ergonomic Shape for easy gripping
- An expanded range may be available on special order. Please enquire.
- Unique styling for a very distinctive look
- Belt fluting for non-slip gripping
- Black thermoplastic with steel or stainless steel inserts

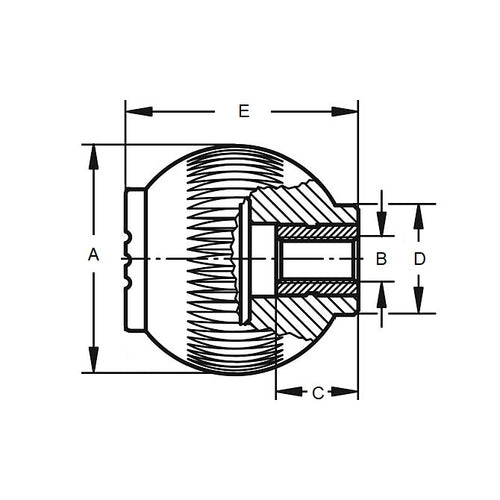

Product Data
- Thread or Hole Size : 5/16-18 UNC (7.94mm)
- Diameter
32.00
mm
(Equiv. 1.26 in.) - Thread Depth (C)
32.0
mm
(Equiv. 1.26 in.) - Base Diameter (D) 15.49 mm
- Body Height (E) 33.02 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 3503K67
- GK405
- GK-405
