KF079C-025-TPH-IN - Datasheet

MBA

Category Information

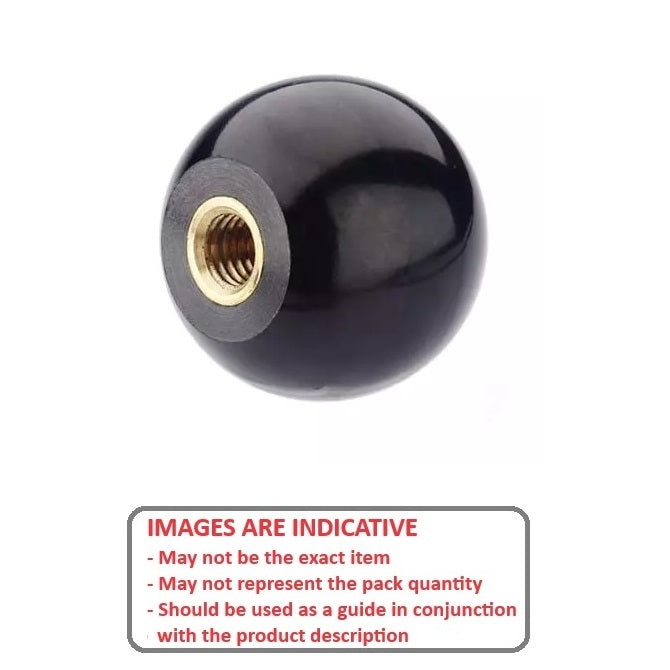

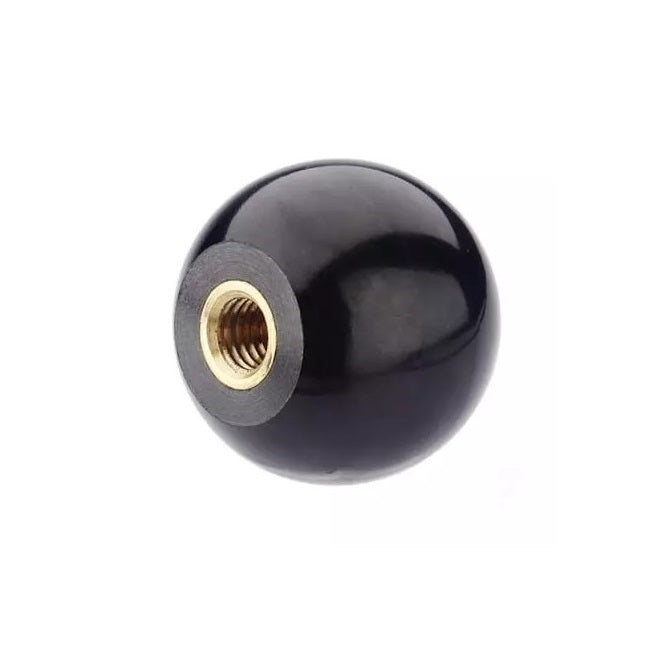

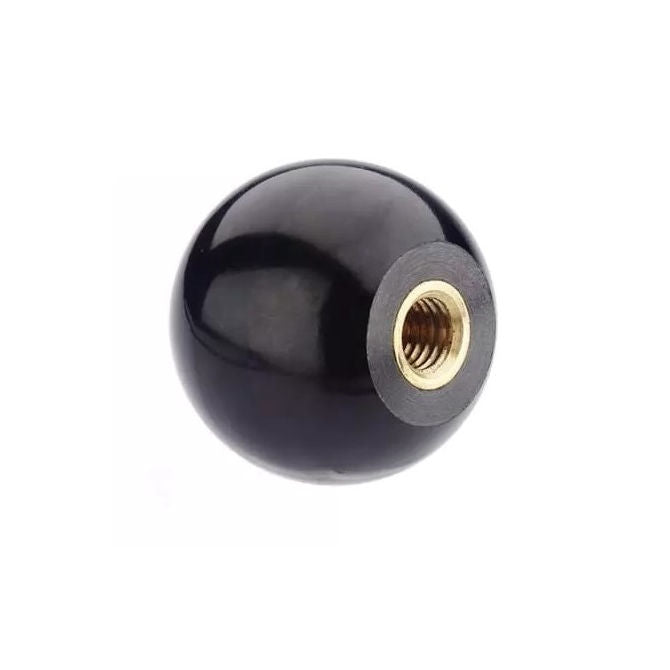

Knobs - Ball - Female Threaded - Phenolic - Standard

Standard Phenolic Female Threaded Ball Knobs. Moulded from black or red phenolic resin.

  • An expanded range may be available on special order. Please enquire.
  • Light Weight.
  • Thermal insulating.
  • Non corrosive.

Product Data

  • Thread or Hole Size : 5/16-18 UNC (7.94mm)
  • Diameter 25.40 mm
    (Equiv. 1 in.)
  • Colour Black
  • Mounting Type Threaded - Brass Insert
  • Material Phenolic
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 6046K14
  • Small Parts BK-2
  • B4
  • B-4
  • BK2
View full details

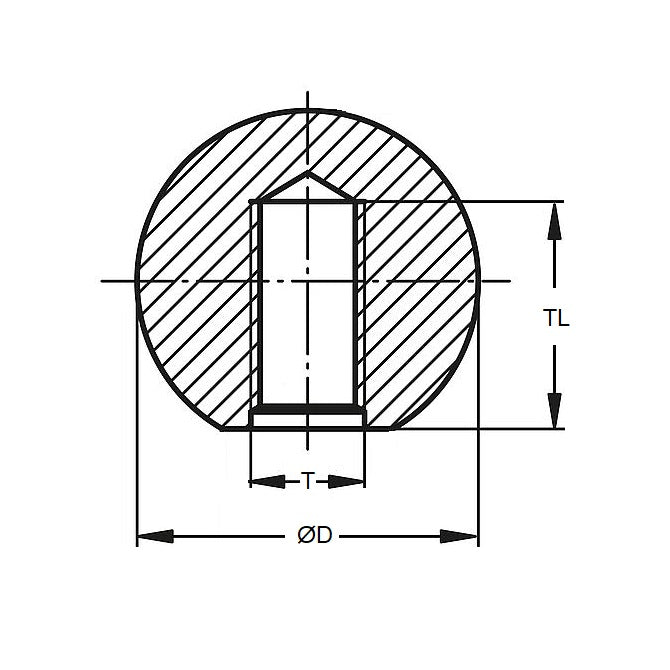

KF079C-025-TPH-INDiagramKF079C-025-TPH-INImage
