SS079C-0095-AS-CP - Datasheet
MBA
Category Information

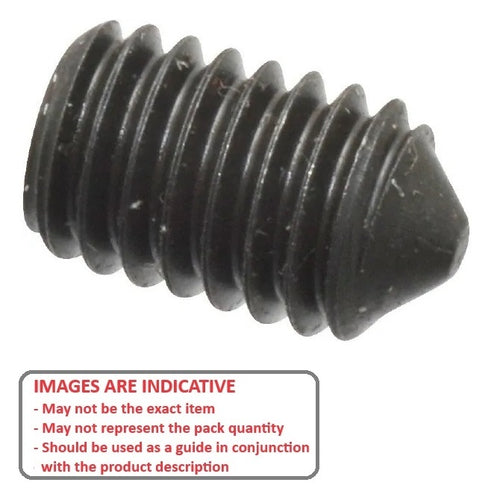

Socket Set Screws - Cone PointCone Point Socket Set Screws. Cone point grub screws
- Socket driven grub screws with a cone point.
- Sharp, pointed cone-shaped end designed to penetrate and wedge into the material it secures, providing exceptional axial and torsional holding power for permanent or long-term applications like holding parts on a shaft.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

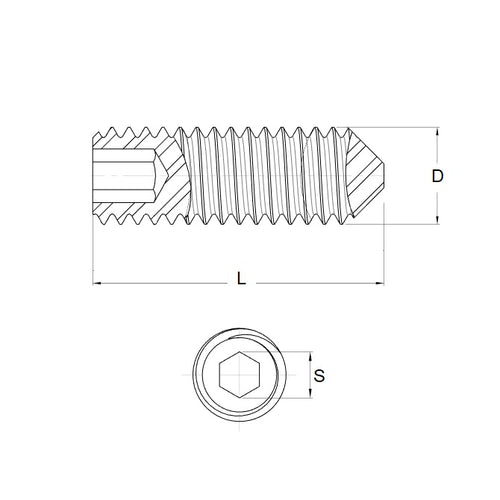

- Thread Length (L)
9.5
mm
(Equiv. 0.374 in.) - Type Cone Point
- Hex Key Size 3.97 (5/32)
- Pitch 1.411 mm
- Threads Per Inch 18 TPI
- Point Angle 90 ° +/- 2
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92695A403
- BRB-121133P
- BRB121133P
