THS079C-076-K-CS-FT - Datasheet
MBA
Category Information

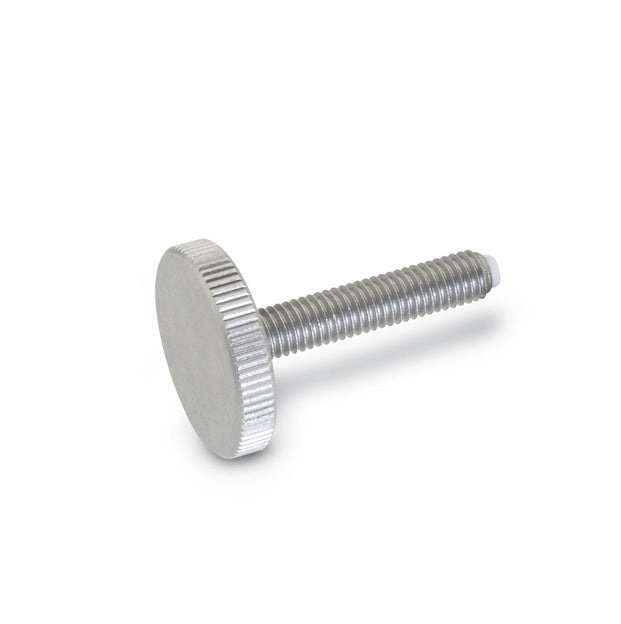

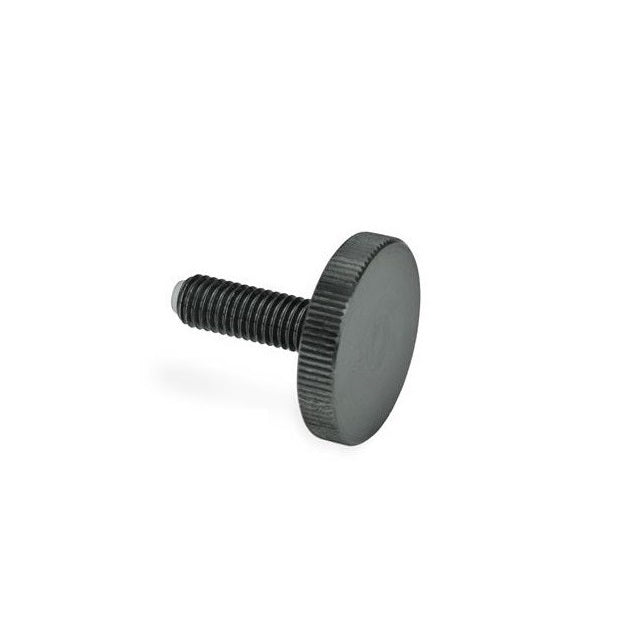

Screws - Thumb - Flat TipFlat Tip Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 5/16-18 UNC (7.94mm)
- Thread Length (B)
76.20
mm
(Equiv. 3 in.) - Head Diameter (E) 19.05 mm
- Head Height (D) 6.35 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- SKHS-3L
- SKHS3L
