PLST-079C-159-HKSLK-027 - Datasheet
MBA
Category Information

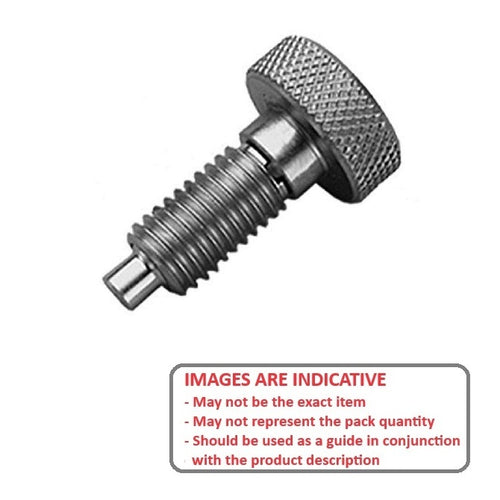

Plungers - Spring - Knurled Handle - Non Locking - StainlessStainless Non Locking Knurled Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : 5/16-18 UNC (7.94mm)
- Thread Length (B)
15.9
mm
(Equiv. 0.626 in.) - Initial Pressure (F1) 4.5 N
- Final Pressure (F2) 26.7 N
- Tip Diameter (D) 3.9 mm
- Tip Length (C) 4.8 mm
- Head Length (F) 9.5
- Additional With Locking Element
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- PHR2SS
- PHR-2SS
