PLST-079C-159-HKASL-013 - Datasheet
MBA
Category Information

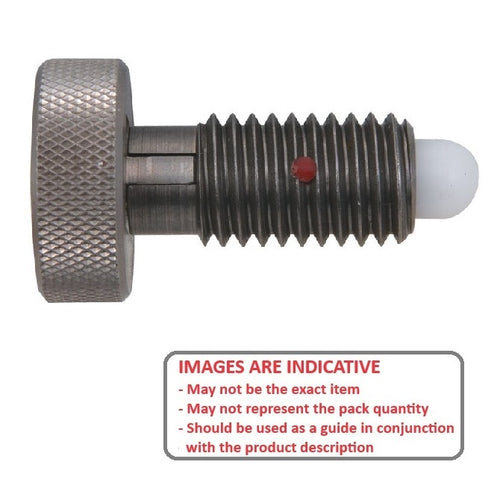

Plungers - Spring - Knurled Handle - Locking - Stainless-AcetalStainless-Acetal Locking Knurled Handle Spring Plungers. Steel body with acetal nose
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

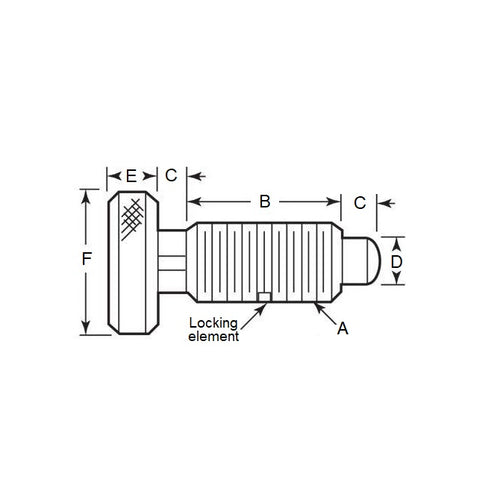

- Thread Size (A) : 5/16-18 UNC (7.94mm)
- Thread Length (B)
15.9
mm
(Equiv. 0.626 in.) - Initial Pressure (F1) 3.3 N
- Final Pressure (F2) 13.4 N
- Tip Diameter (D) 4.6 mm
- Tip Length (C) 4.8 mm
- Head Height (E) 7.1 mm
- Head Diameter (F) 15.9 mm
- Material Stainless Steel Body with Acetal
Product Compliance and Data
Additional Resources
Cross References
- NKP17
- NKP-17
