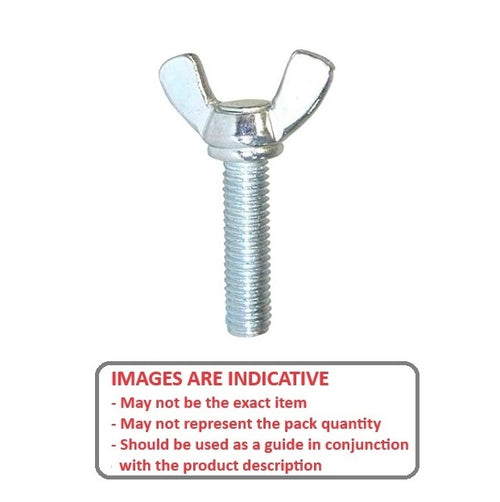

THS079C-025-W-CS - Datasheet
MBA
Category Information
Screws - Thumb - Wing - StandardStandard Wing Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.

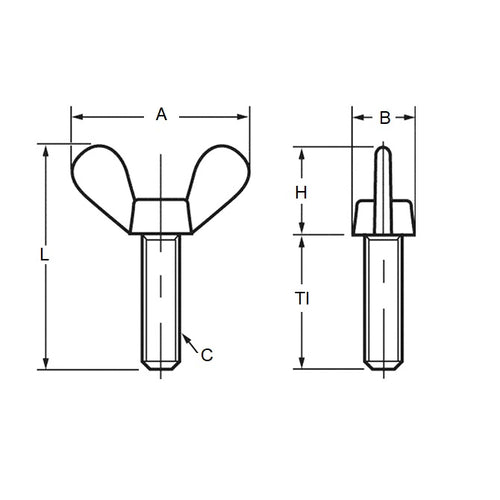

Product Data
- Thread Size (C) : 5/16-18 UNC (7.94mm)
- Thread Length (Tl)
25.40
mm
(Equiv. 1 in.) - Overall Length (L)
44.45
mm
(Equiv. 1.75 in.) - Head Diameter (A) 44.45 mm
- Head Height (H) 19.05 mm
- Shoulder Diameter (B) 15.88 mm
- Material Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MIT-67
- MIT67
