THS079C-025-H-CB - Datasheet
MBA
Category Information

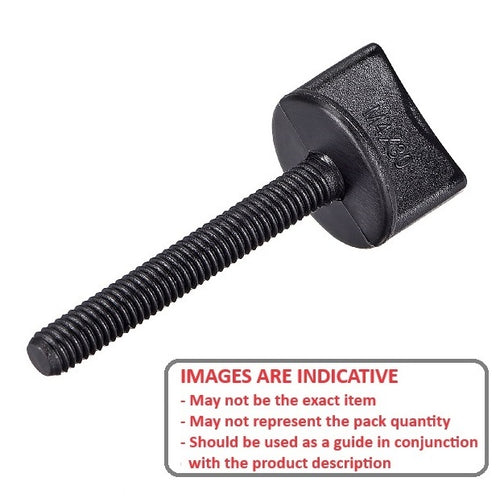

Screws - Thumb - Half TurnHalf Turn Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

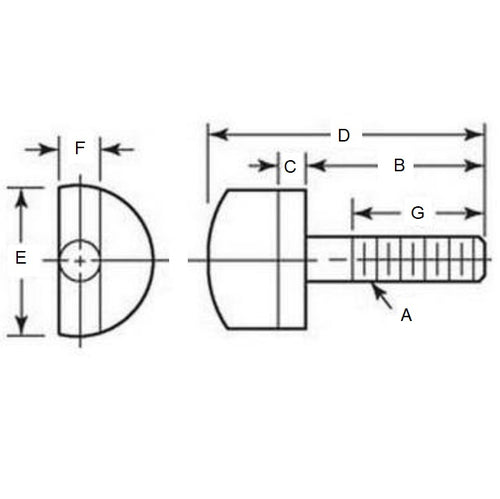

- Thread Size (A) : 5/16-18 UNC (7.94mm)
- Thread Length (G)
25.40
mm
(Equiv. 1 in.) - Overall Length (D)
26.99
mm
(Equiv. 1.063 in.) - Head Diameter (E/F) 25.40 / 7.94 mm
- Finish Black Oxide
- Material Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- HTS-710
- HTS710
