THS079C-019-W-CS - Datasheet
MBA
Category Information

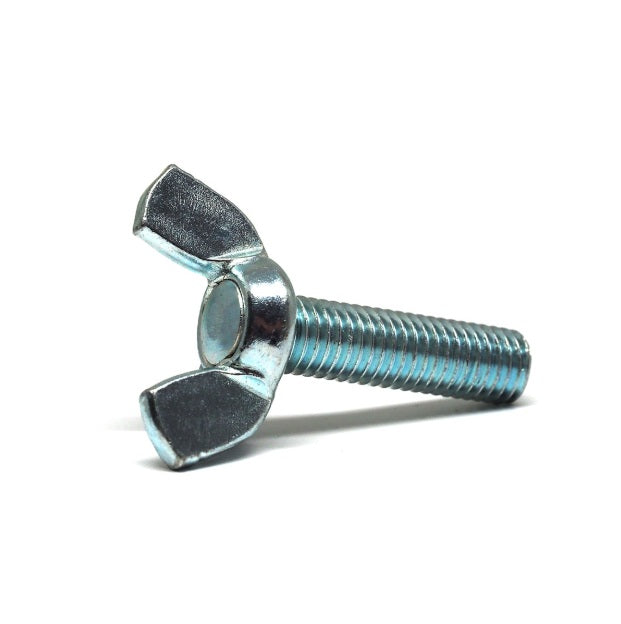

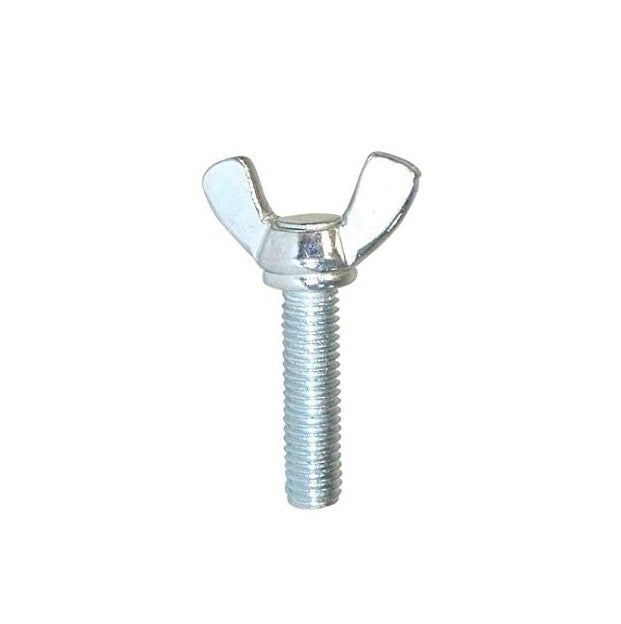

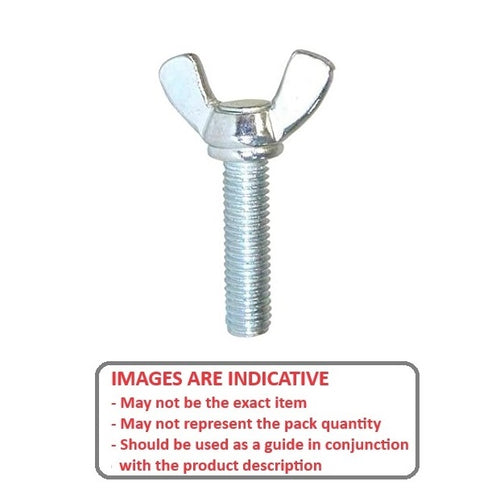

Screws - Thumb - Wing - StandardStandard Wing Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.

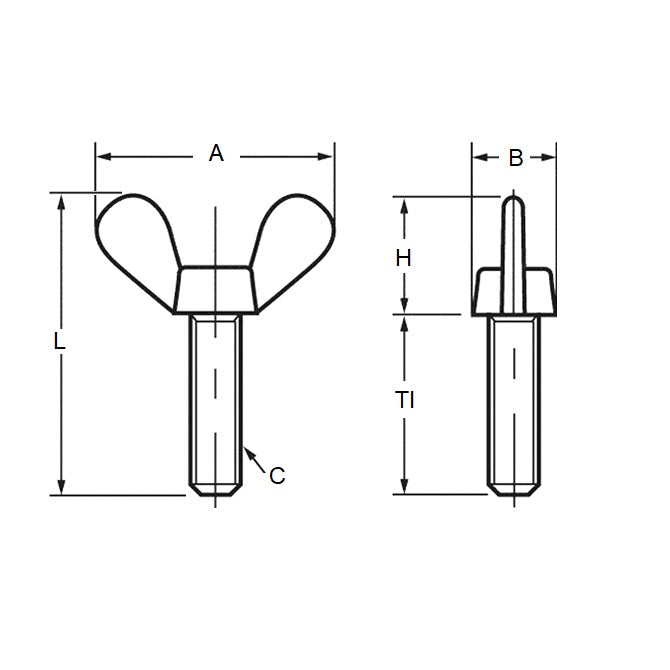

Product Data
- Thread Size (C) : 5/16-18 UNC (7.94mm)
- Thread Length (Tl)
19.05
mm
(Equiv. 0.75 in.) - Overall Length (L)
38.10
mm
(Equiv. 1.5 in.) - Head Diameter (A) 44.45 mm
- Head Height (H) 19.05 mm
- Shoulder Diameter (B) 15.88 mm
- Material Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MIT-66
- MIT66
