THS079C-013-FL-MI - Datasheet
MBA
Category Information

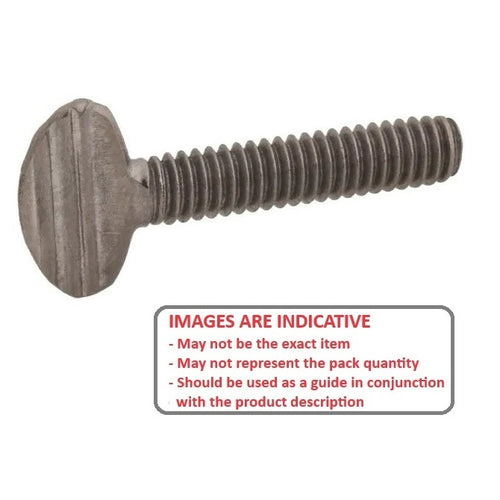

Screws - Thumb - Flat Key Head - StandardStandard Flat Key Head Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

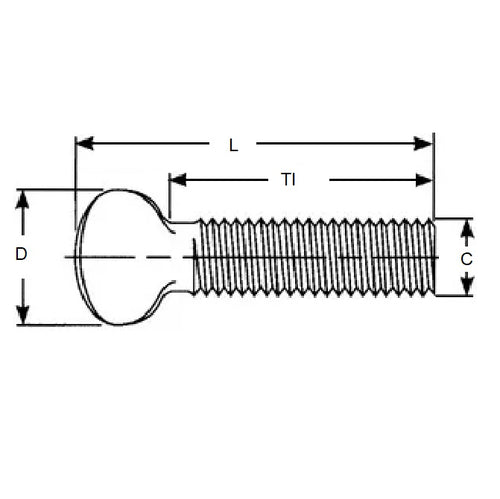

- Thread Size (C) : 5/16-18 UNC (7.94mm)
- Thread Length (Tl)
12.70
mm
(Equiv. 0.5 in.) - Overall Length (L)
30.16
mm
(Equiv. 1.187 in.) - Head Diameter (D) 25.40 mm
- Finish Tumbled
- Head Type Flat Key
- Material Malleable Iron
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MIT12
- MIT-12
