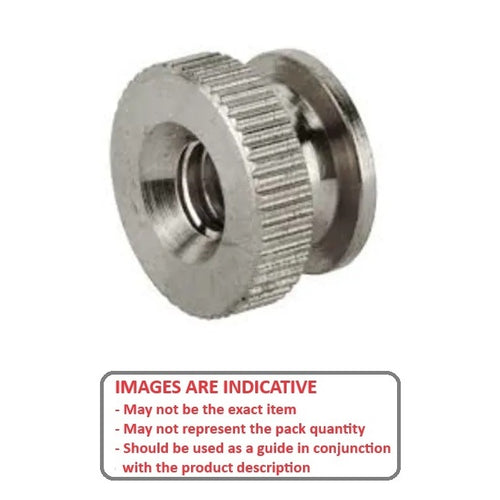

NT079C-THC-S3 - Datasheet

MBA

Product Data

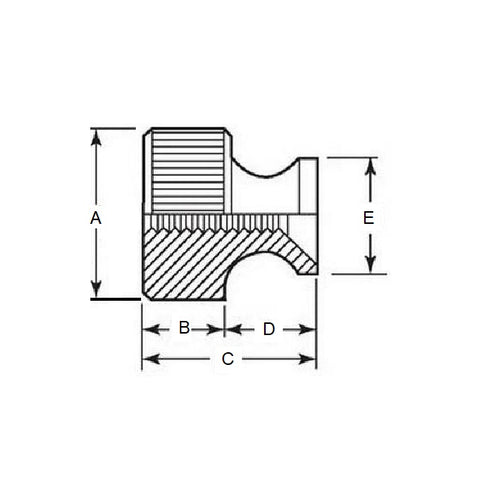

• Thread Size : 5/16-18 UNC (7.94mm)
• Overall Length (C) 10.3 mm
  (Equiv. 0.406 in.)
• Head Width (B) 4.76 mm
  (Equiv. 0.187 in.)
• Head Diameter (A) 15.88 mm
• Collar Diameter (E) 13.49 mm
• Collar Height (D) 5.56 mm
• Material Stainless Steel 303 (Similar to A2, 304, 18-8)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
