IN-TP-079C-150-P - Datasheet
MBA
Category Information

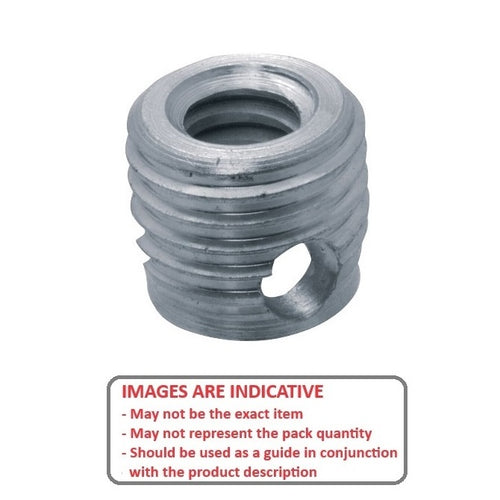

Inserts - Self Tapping - For Plastics - SteelSteel For Plastics Self Tapping Inserts. Threaded inserts are screwed into preformed or predrilled holes and cut own threads into the wall of permanent installations.
- Provides a strong wear and vibration resistant thread.
- Low volumes can be installed by winding in with a bolt through the threaded centre. Large volumes can be installed with hand installation tools (Sold Seperately)
- Hole sizes are reference only. Can variey on batchs. Optimum hole size is to be determinded through experimentation.
- A 60o countersink is required for flush mounting.
- Use with plastics, light metal alloys or hard wood. Made from steel with zinc chromate finish.
Product Data

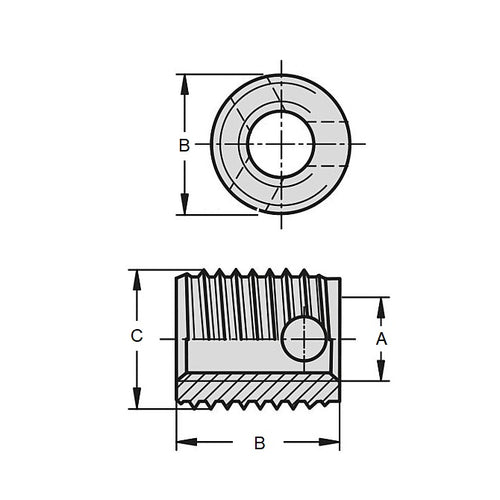

- Internal Thread : 5/16-18 UNC (7.94mm)
- Rec. Hole Diameter
10.59
mm
(Equiv. 0.417 in.) - Length (L)
15.0
mm
(Equiv. 0.591 in.) - Outside Diameter (B) 12.014 mm
- Required Hole Depth 18.009 mm
- Soft Metals Hole Size 10.90
- Material to be used in Plastic, Light Metal Alloys and Hardwood
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- INTP0794C150P
